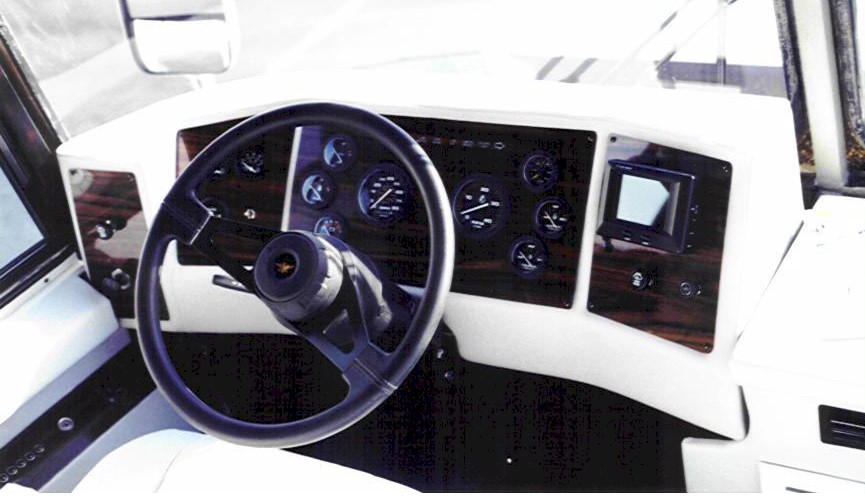

eagle white.jpg (89976 bytes) eagle3.jpg (21552 bytes) eagle_cut_away.jpg (66148 bytes)

Eagle replacement panels available

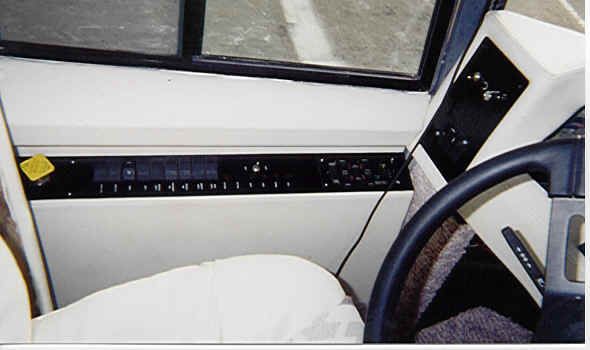

Eagle side panels available call for price

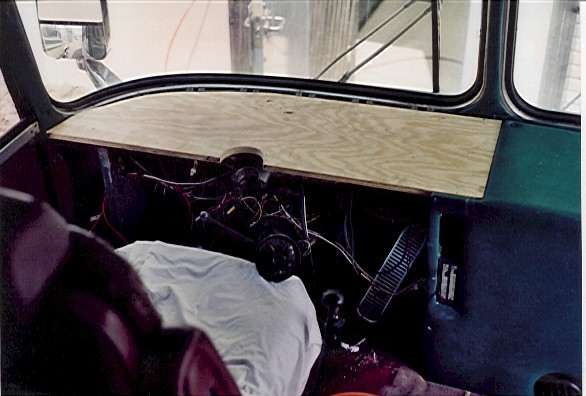

Eagle cut away showing wood base to mount new housing 3/4 plywood used to match existing dash. Also notice the heater control has been lowered.

Our Eagle gauge panel now comes with our new warning light bar. See layouts below or see our Accessories page for more details.

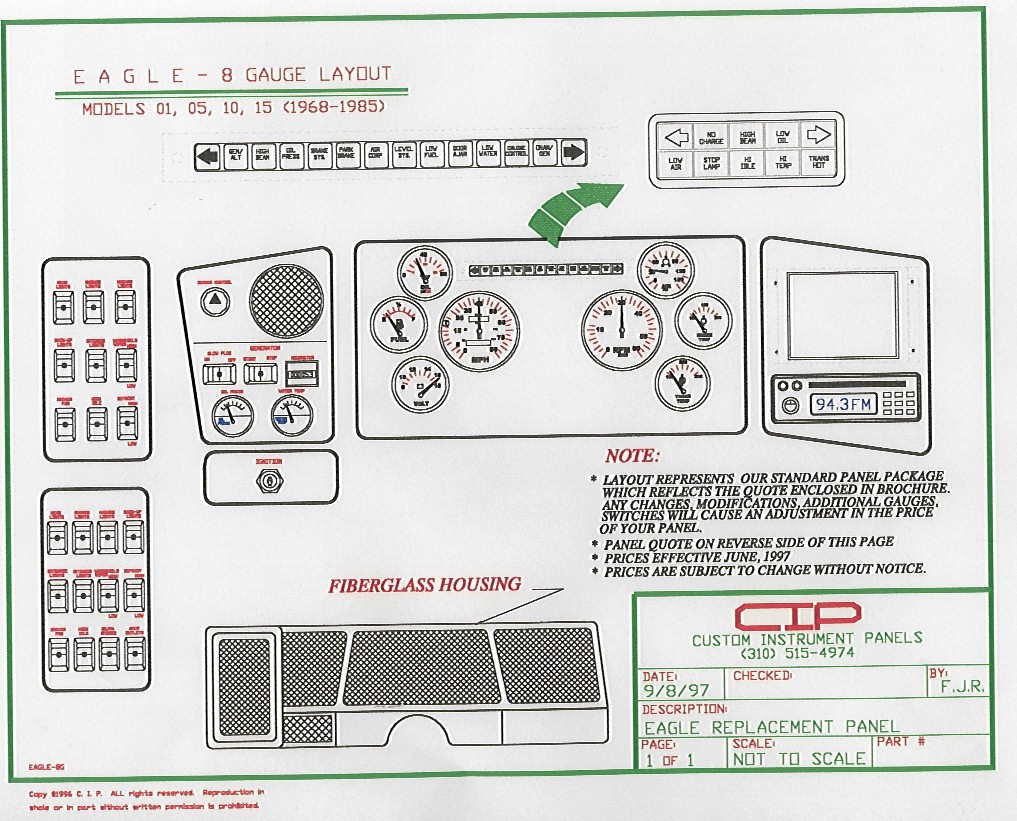

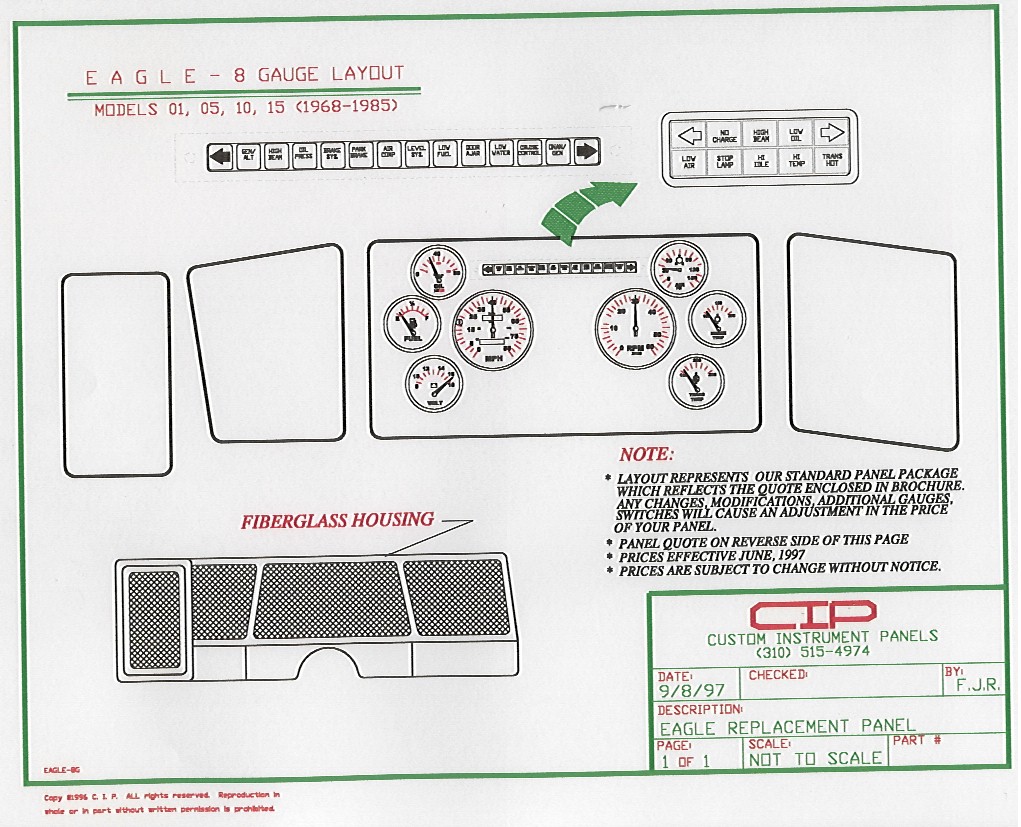

EAGLE  8 GAUGE LAYOUT

Models 01, 05, and 15

Eagle 01 require some modification call for information

HARDWARE

 PANELS

Gauges

Panel mounting screws

Gauge Panel Speedometer

Warning Light Bar

 Switch Panel A * Fuel Gauge**

Fiberglass housing with brackets

 Switch Panel B * Voltmeter-12 Volt
Back-Up Monitor Panel * Oil Pressure Gauge **

*     Blank Panels only accessories

        are not  included. (Blank Panels

       (set of 4).......$150.00.

**   Sending unit included



Eagle Model-01 Housing Price $450.00







  Transmission Gauge **
 Water Temp. Gauge**
Air Pressure Single or Dual
Tachometer

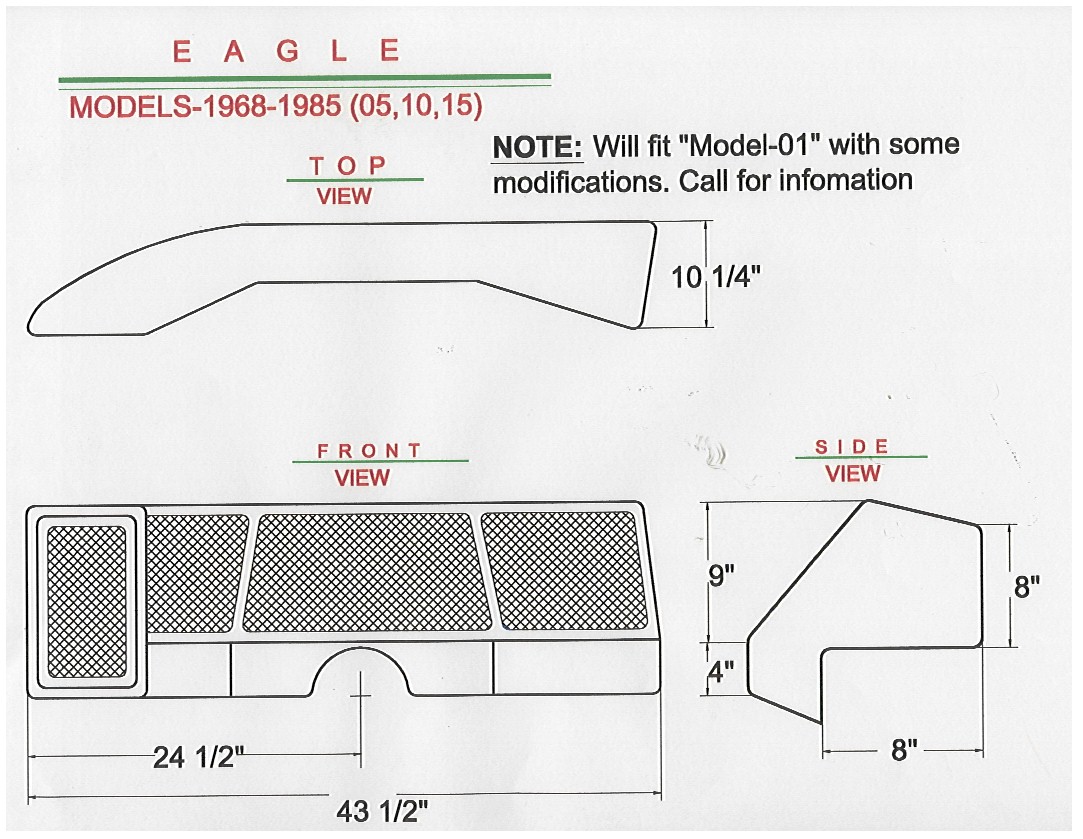

EAGLE 8 GAUGE LAYOUT EAGLE HOUSING DIMENSIONS

        EAGLE 8 GAUGE

GRAND TOTAL.........................................................$1,289.47

(Premier White Face Gauges is an additional $75.00 for 8 gauge system).

PANEL FINISHES

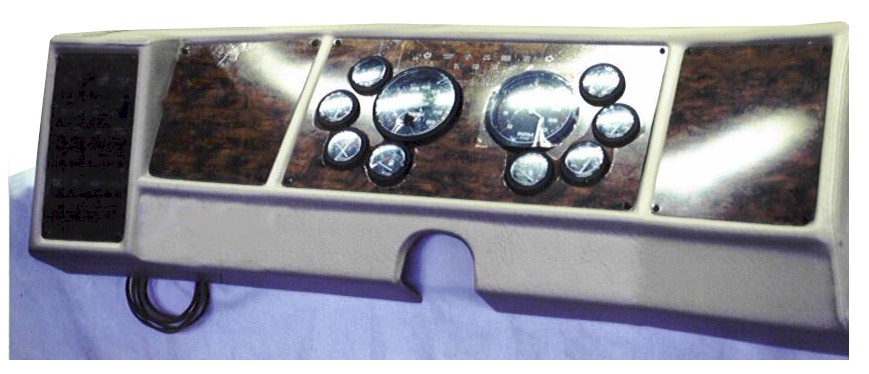

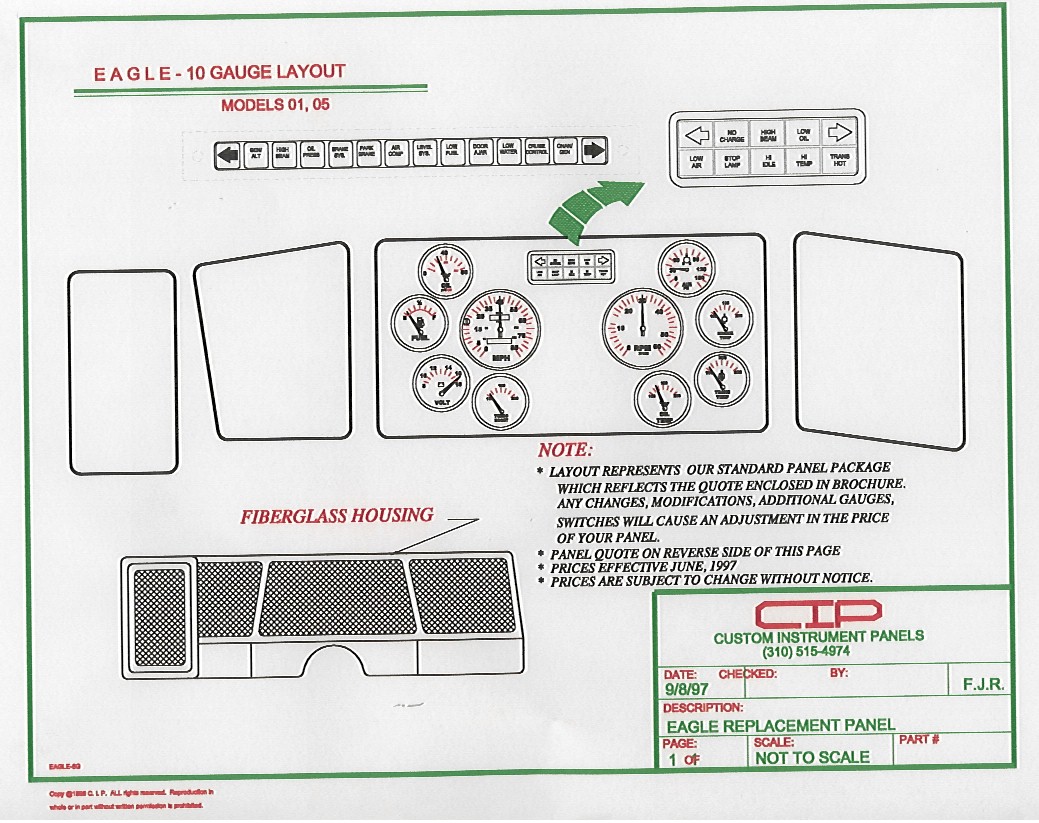

EAGLE 10 GAUGE LAYOUT




EAGLE 10 GAUGE LAYOUT

EAGLE HOUSING DIMENSIONS

EAGLE 10 GAUGE



Models 01, 05, and 15  (NOTE: Eagle 01's require some modifications)
Hardware Fiberglass housing with brackets Panel mounting screws
Panels Gauge Panel Switch Panel* Radio/CB Panel* Back-up Monitor Panel*
Gauges
Pressure Oil Pressure** Single or  Dual Air Pressure             Turbo Boost (Pilot Tube not included)
Temperature Transmission  Temp.** Water Temp.** Oil Temp.**
Performance Fuel** Voltmeter-12 Volt  *     Blank Panels only accessories            **   Sending unit included

Eagle Model-01 Housing Price $450.00

Control Speedometer Tachometer

GRAND TOTAL.......................................................$1,375.52

(Premier White Face Gauges is an additional $95.00 for 10 gauge system)

* Blank Panel.   Accessories are not included. ( see accessories page)

EAGLE 8 GAUGE COMPLETE SYSTEM


EAGLE 10 GAUGE COMPLETE

EAGLE HOUSING DIMENSIONS

EAGLE COMPLETE LAYOUT



Models 01, 05, and 15  (NOTE: Eagle 01's require some modifications)
Hardware One vinyl covered fiberglass housing Mounting Bracket and Screws
Panels Gauge Panel Switch Panel* Generator Panel* Back-up Monitor Panel*
Gauges
Pressure Oil Pressure Single or  Dual Air Pressure             Turbo Boost
Temperature Transmission  Temp. Water Temp. Oil Temp.
Performance Fuel Voltmeter-12 Volt
Control Speedometer Tachometer
Accessories 5" Back-up Monitor with camera Radio with CD player or Cassette Generator Panel switches, hour meter, dimmer control and gauges: Oil Pressure 0-80 psi and Sender- Water Temp and Sender
9 to 12 switches Key Ignition switch

GRAND TOTAL...............................................$ 2,839.89(Premier White Face gauges is an additional $95.00 for 8 gauge deluxe system)

 * Blank Panel.   Accessories are not included. ( see accessories page)

Prices effective January 1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

The Panel featured above is just an idea of what can be done. We can arrange the panel the way you want it. Our Prices include complete panel packages or you can buy the panels, housing and gauges separately.

The Eagle Panel is available with warning lights, and the following gauges:

         Also available with 12 volt lighting only. Prices are dependent upon your selection of the above items, some are optional and are not standard on our panels. Key switch and other engraved switches, radios, CB, & back-up camera and monitor are available at an extra charge.


Eagle 10 replacement panels available call for price.

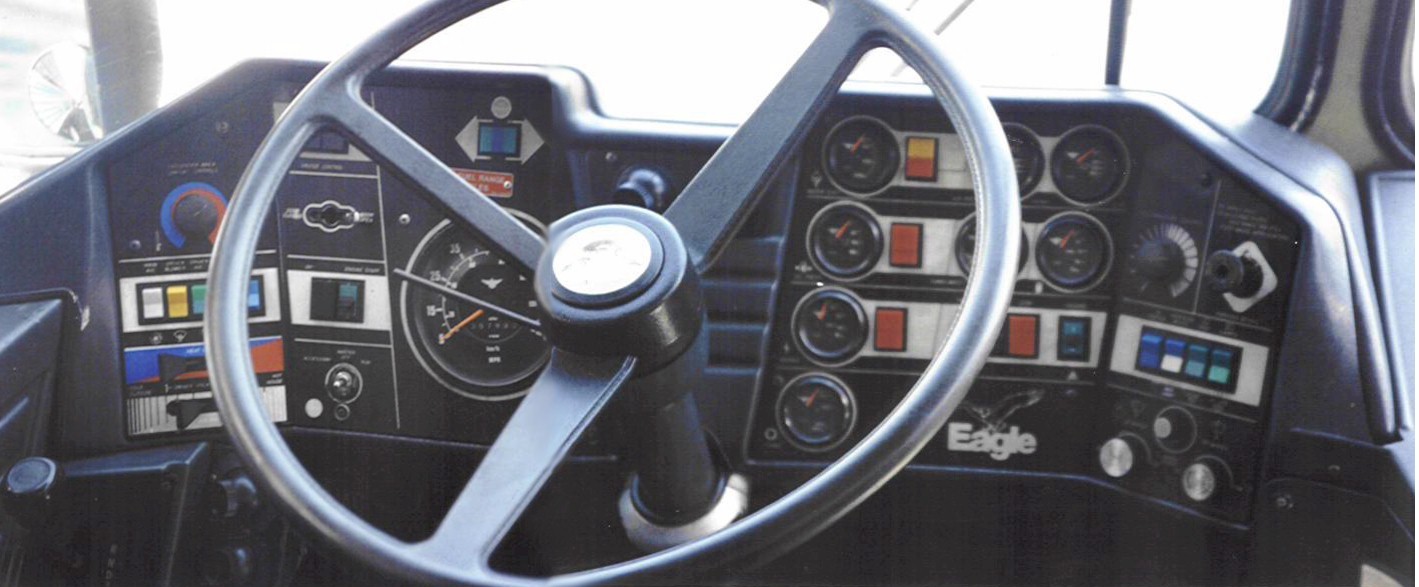

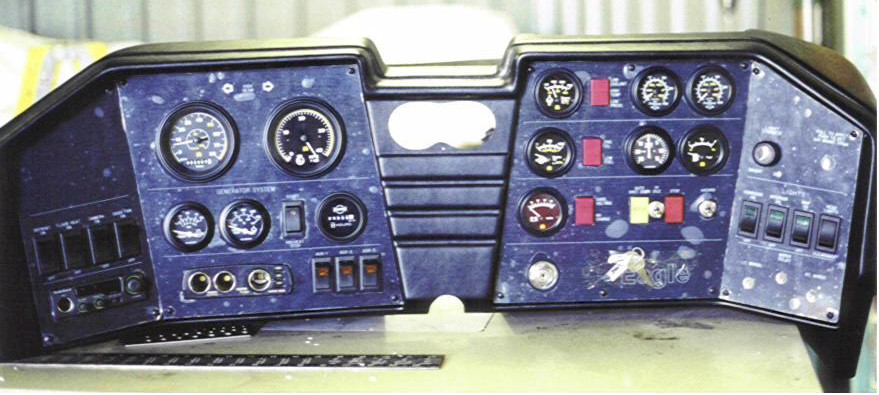

Eagle 10 Original Dash system

Custom Eagle replacement panels for Eagle 10 Call for price.

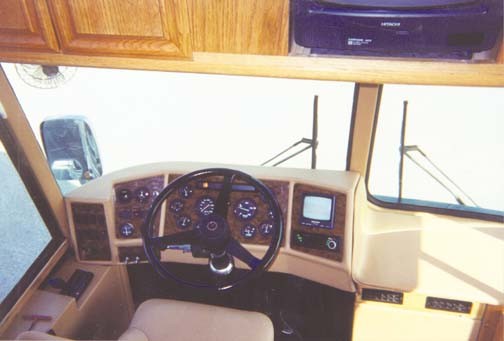

driver dash Mar03.jpg (34305 bytes)
Eagle 10 Gauge System
