Fleetwood Replacement Panels  1991-1995

Southwind, Pace Arrow, Bounder, and Coronado

cip_isspro_replacement.jpg (11784 bytes) isspro_w-tach.jpg (12950 bytes) isspront.jpg (5823 bytes) isspro-nt.jpg (6105 bytes)

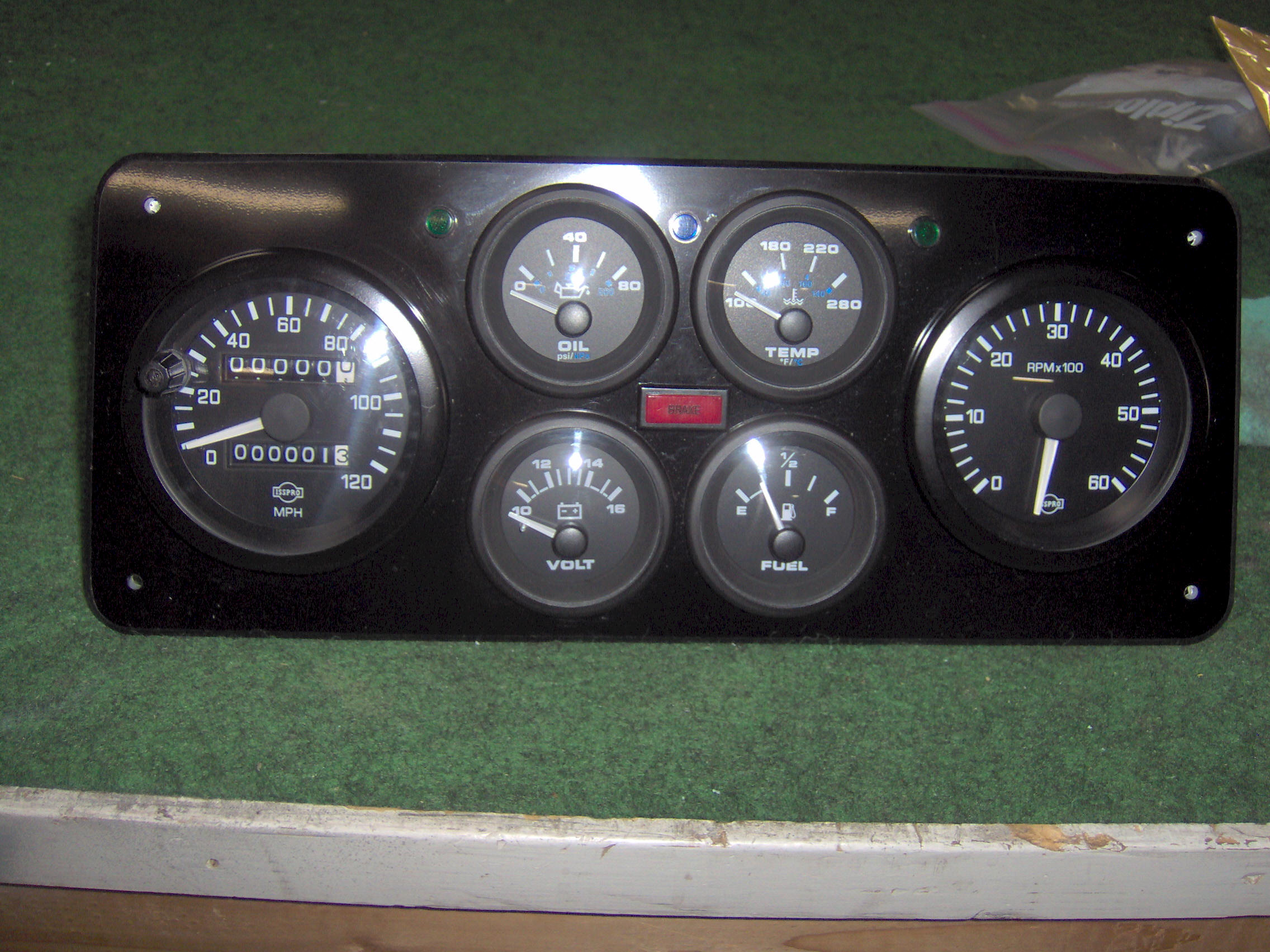

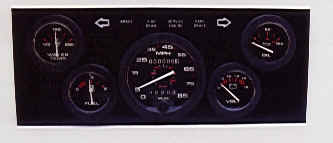

CIP Fleetwood replacement with tach ORIGINAL Fleetwood Electronic Dash with tach     CIP Fleetwood replacement without tach ORIGINAL Fleetwood electronic dash without tach

          The new CIP panel is designed to replace the factory instrument panel that is standard on motor homes with Fleetwood panels. It comes with analog gauges, engraved warning lights for a more elegant, sophisticated driver friendly command controls. The precise placement of instruments enhances the pleasure of ease of driving.

Functional and easy to read describes the CIP panel with Teleflex gauges. The instrumentation used as standard on the CIP panel is as follows:

CIP FLEETWOOD REPLACEMENT

HARDWARE

Gauges

Panel mounting screws

Speedometer with trip odometer
Fuel Gauge*

Voltmeter-12 Volt
          Oil Pressure Gauge & 80 psi Sending Unit
Transmission Gauge & Sending Unit .
 Water Temp. Gauge & Sender
Tachometer (Diesel or Alternator)

       The CIP panel is available in either gas or diesel engine chassis. The sending units are included with the panel for water and oil pressure for a perfect match. The fuel gauge is compatible with the fuel sender 90-ohm resistance.

Our panels are made of durable ABS rigid plastic. Its properties include good impact resistance characteristics. Easy installation. It virtually fits into the same space, however some modifications will be necessary for the CIP Panel with the Tach. The panel opening must be at  least 5"x 13". The corners must be squared in order for the panel to fit. This only applies to the replacement panel with the tachometer. The standard replacement will fit.

In order for this unit to just plug in, we would need to know if your panel has a GM plug in the back of the panel, otherwise some additional wiring will be necessary. Our panel comes with a 2-Year Limited Warranty and an owner's manual with easy to read diagramed instructions on how to install your panel.

Price for Electronic Replacement without Tach....................... $549.50

                                                             with Tach....................... $602.00

Replacement Panels (CHEVY P-32)

 1991-1997

P-32

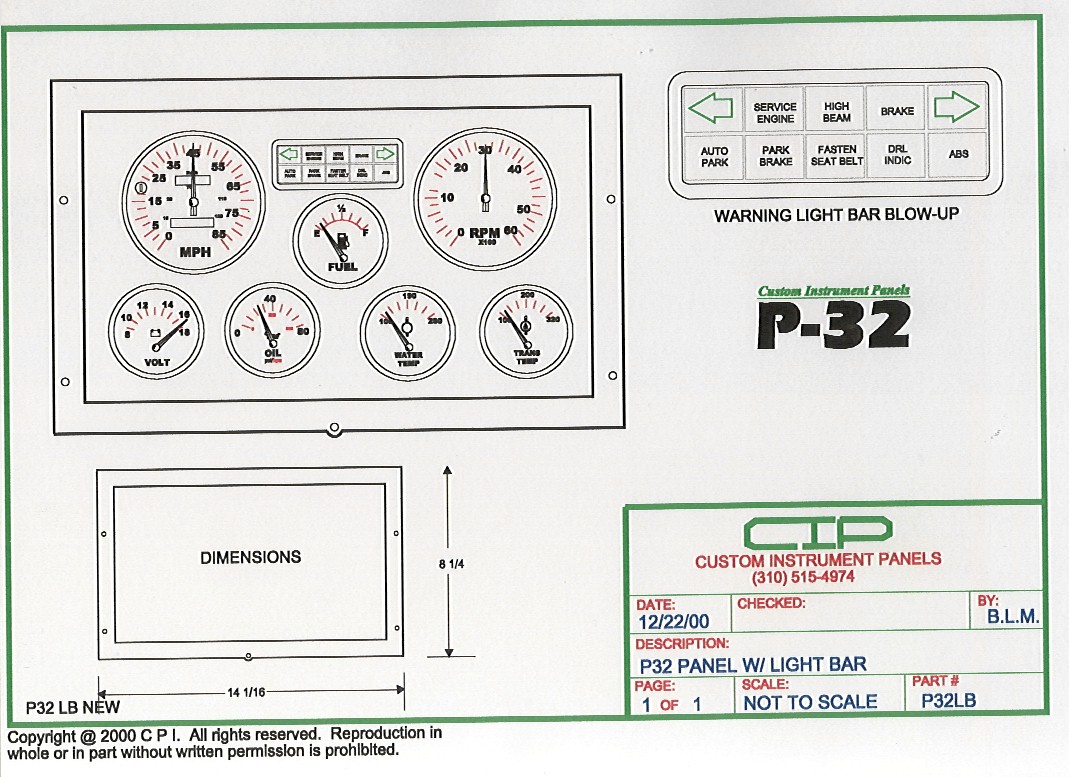

CIP P-32 NEW DIMENSIONS CIP P-32 NEW        ORIGINAL P-32

  GRAND TOTAL P-32..........................................................................................$669.89

P-32 CIP

HARDWARE

Gauges

Panel mounting screws

Speedometer with trip odometer
Fuel Gauge*

Voltmeter-12 Volt
         Oil Pressure Gauge & 80 psi Sending Unit
Transmission Gauge & Sending Unit .
 Water Temp. Gauge & Sender
Oil Temp & Sender or Vacuum Gauge



P-30

    CIP P-30M   OLD P-30 CIP P-30M  LAYOUT

MECHANICAL PANEL P-30........................................................................$549.50

CIP-P-30

HARDWARE

Gauges

Panel mounting screws

Speedometer with trip odometer
Fuel Gauge*

Voltmeter-12 Volt
             Oil Pressure Gauge & 80 psi Sending Unit
Tachometer
 Water Temp. Gauge & Sender

Pace Arrow-Southwind

1984-1990  (1991-1997 see Fleetwood replacement panels)

pacearrow_southwind.jpg (36641 bytes) newpag39.gif (116163 bytes) 85_pace_arrow.jpg (73473 bytes) pace-s.jpg (73785 bytes)

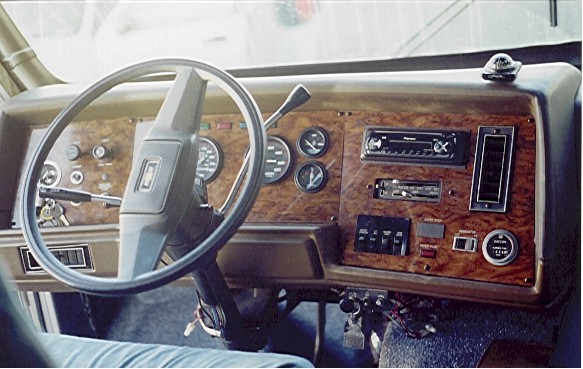

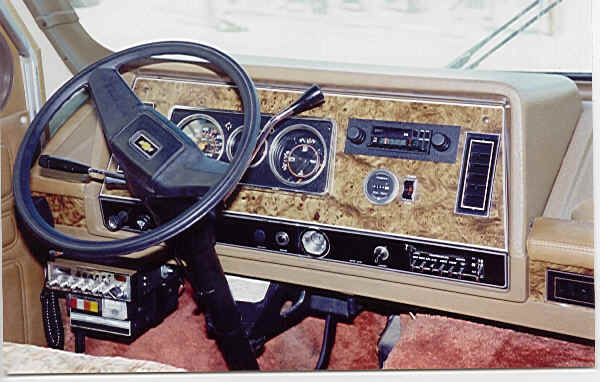

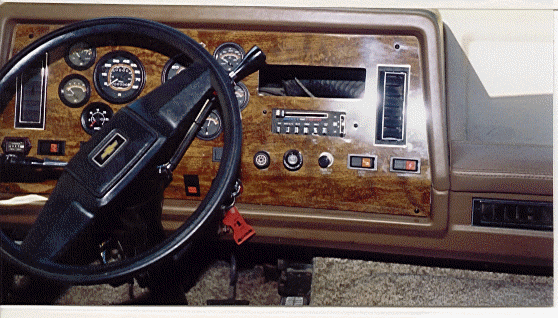

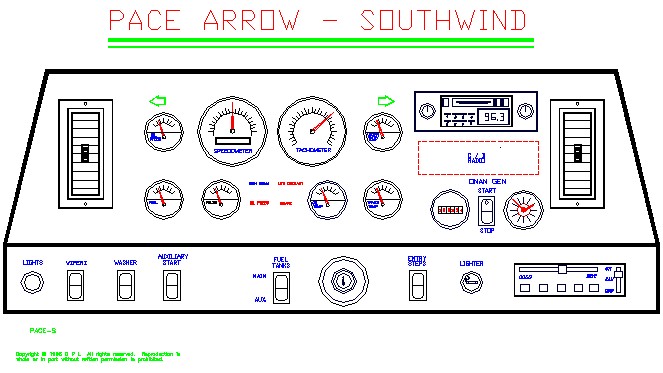

ORIGINAL CIP COMPLETE REPLACEMENT '85 Pace Arrow CIP COMPLETE REPLACEMENT LAYOUT  '1994 Pace Arrow replacement installed

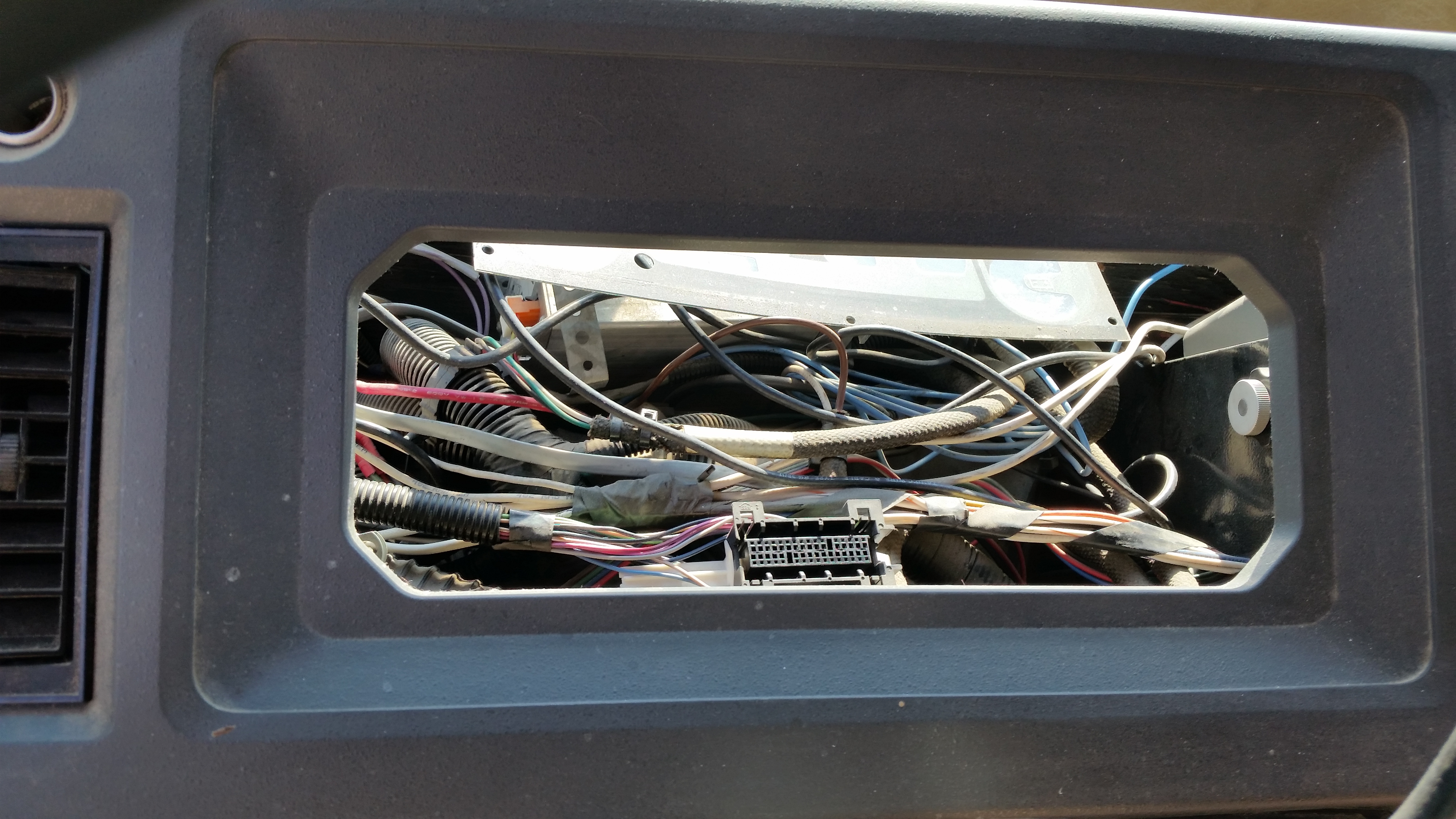

'1994 Pace Arrow front mount opening

HARDWARE Panel mounting screws
PANEL Engraved control switches warning lights and turn signals
GAUGES Speedometer with Trip Odometer Tachometer Fuel Gauge ( 90 ohm resistance Chevy chassis match)   Voltmeter-12 Volt Oil Pressure Gauge & 80 psi Sending Unit Transmission . Gauge & Sending Unit Water Temp. Gauge & Sender Vacuum or Oil Temp & Sender



GRAND TOTAL............................................................................$715.00

Prices effective January 1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

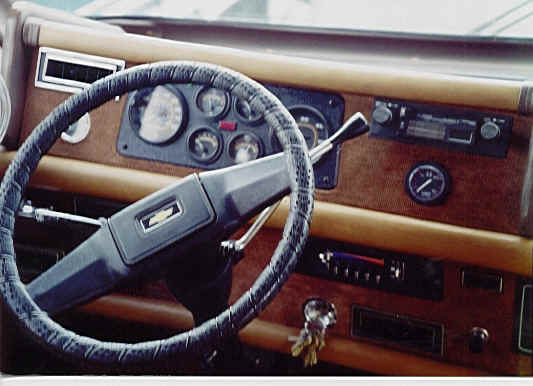

Bounder

1984-1990


P-30 Original

                       CIP P-30M

CIP P-30M Layout





HARDWARE Panel mounting screws
PANEL Light indicated turn signals and high beam indication.
GAUGES Speedometer with Trip Odometer Tachometer Fuel Gauge ( 90 ohm resistance Chevy chassis match)   Voltmeter-

12 Volt

Oil Pressure Gauge & 80 psi Sending Unit Water Temp. Gauge & Sender



GRAND TOTAL.............................................................................................$549.50

Prices effective January, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

Bounder 1991-1997

Bounder 1991 CIP Rrplacement.jpg (225114 bytes) Bounder P-32 Panel.jpg (123669 bytes) bounder.jpg (17475 bytes)

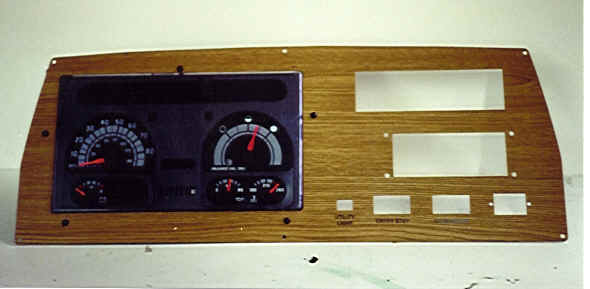

CIP  Complete Replacement CIP P-32 Replacement Original P-32 Panel



P-32 CIP & Complete Replacement

HARDWARE

Gauges

Panel mounting screws

Speedometer with trip odometer
Fuel Gauge*

Voltmeter-12 Volt
Oil Pressure Gauge & 80 psi Sending Unit
Transmission Gauge & Sending Unit .
 Water Temp. Gauge & Sender
Tachometer
*Oil Temp or Vacuum (On Complete Panel Only)

    TOTAL PRICE P-32.................................................................................$719.89

  TOTAL PRICE For Complete Replacement.............................................$925.89


Flair

P-32 CIP

HARDWARE

Gauges

Panel mounting screws

Speedometer with trip odometer
Fuel Gauge*

Voltmeter-12 Volt
p32 with lite bar.jpg (64855 bytes) Oil Pressure Gauge & 80 psi Sending Unit
Transmission Gauge & Sending Unit .
 Water Temp. Gauge & Sender
Oil Temp & Sender or Vacuum Gauge
Tachometer



TOTAL PRICE FLAIR P-32..............................................................$719.89

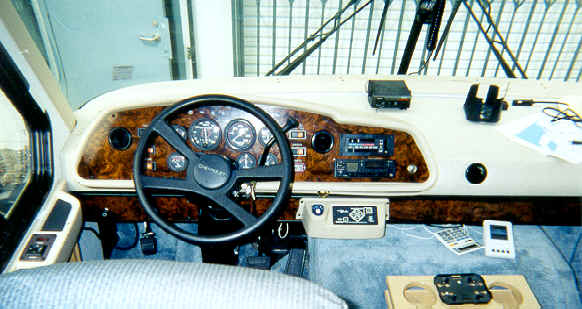

Coronado

Coronado original Dash.jpg (97691 bytes)

Coronado CIP Center Replacement.jpg (94710 bytes)

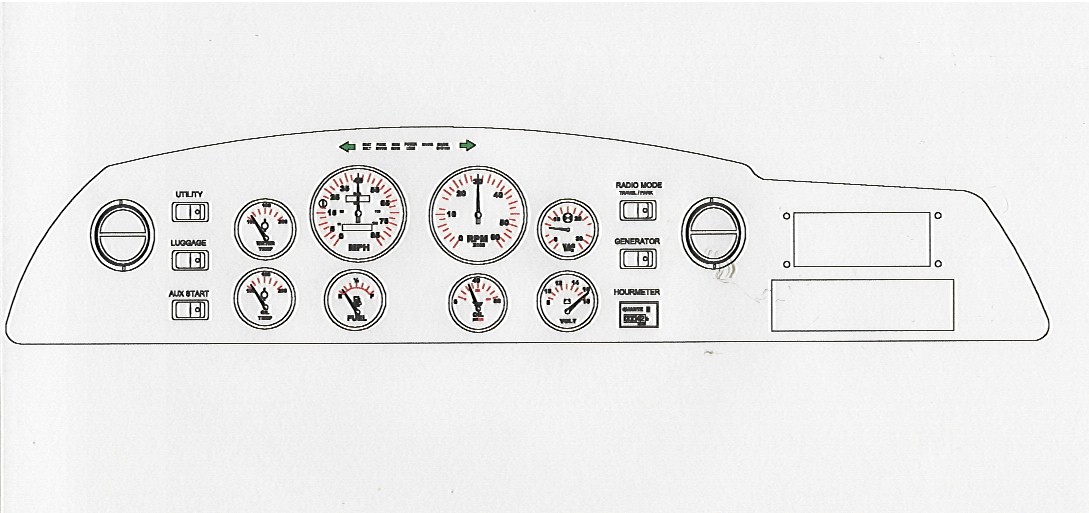

Coronado cip COMPLETE REPLACEMENT.jpg (112992 bytes)

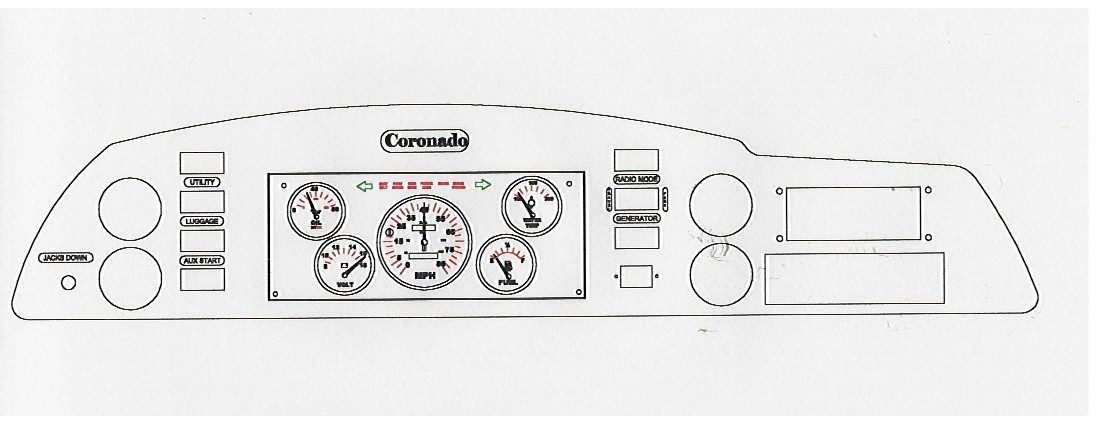

Coronado Original Panel Layout CIP Center 5 Gauge Panel CIP Complete Replacement





CORONADO 1 CORONADO 2



CIP CORONADO 5 Gauge & Complete Panel

HARDWARE

Gauges

Panel mounting screws

Speedometer with trip odometer
     Engraved Switches Fuel Gauge

     Warning Light Bar

Voltmeter-12 Volt
Oil Pressure Gauge & 80 psi Sending Unit
Water Temp Gauge & Sender
Transmission Temp & Sender*-(Only on Complete Panel)
Tachometer* (Only on Complete Panel)
Oil Temp or Vacuum* (Only on Complete Panel.)

Total 5 Gauge Panel...............................................................$549.50

Total Price for Complete Panel........................................$995.89

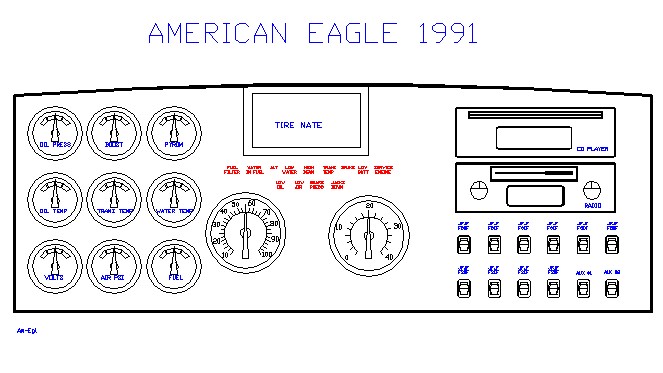

American Eagle

    american eagle01.bmp (714170 bytes)   american eagle02.bmp (708854 bytes)                     american eagle03.bmp (712054 bytes)     american eagle04.bmp (645594 bytes)

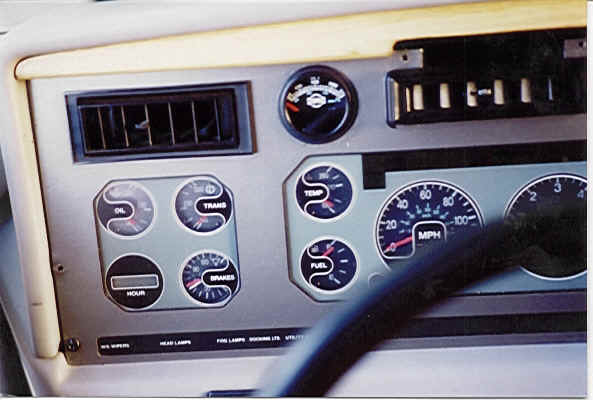

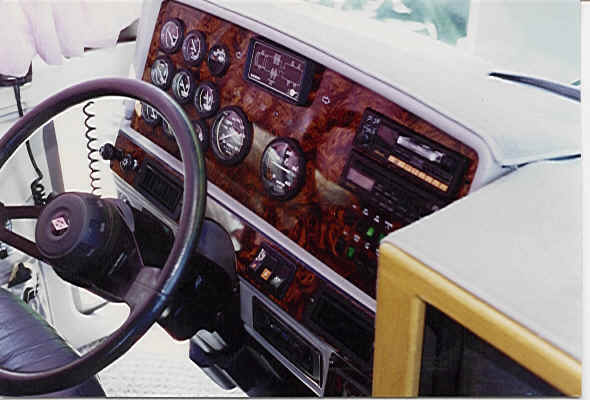

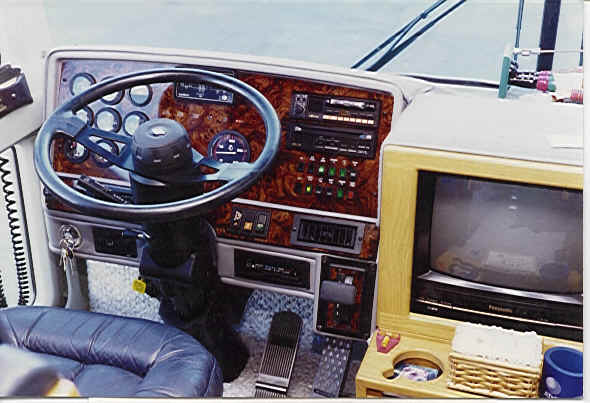

                   CIP COMPLETE REPLACEMENT                                                         AMERICAN EAGLE ORIGINAL


CIP COMPLETE REPLACEMENT

HARDWARE

Gauges

Panel mounting screws

Speedometer with trip odometer
       Warning Light Bar Fuel Gauge & Sending Unit 90 ohm Resistance

     Engraved Switches

Voltmeter-12 Volt
Oil Pressure Gauge & 80 psi Sending Unit
Transmission Gauge & Sending Unit .
 Water Temp. Gauge & Sender
Tachometer (Diesel or Alternator)
Oil Temp & Sender
Dual Air Pressure

Turbo Boost

Pyrometer

TOTAL FOR COMPLETE PANEL.............................$1,125.49

Prices effective January, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.


Discovery

Refer to Fleetwood Replacement Panels (Fleetwood or standard Chevy)

Customize your old instrument Panel. We can make you a replacement!
