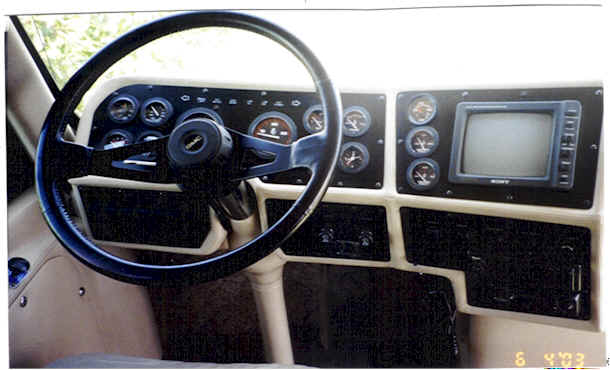

Our GM gauge panel now comes with our new warning light bar. See layouts below or for more detail see our Accessories page.
The Panel featured above is just an idea of what can be done. We can arrange the panel the way you want it. Our Prices include complete panel packages or you can buy the panels, housing and gauges separately.
The GM Bus Panel is available with warning lights, and the following
Also available with 12 or 24 volt lighting only. Prices are dependent upon your selection of the above items, some are optional and are not standard on our panels. Key switch and other engraved switches, radios, CB, & back-up camera and monitor are available at an extra charge.
8-GAUGE DASH SYSTEM-12 VOLT
|
|
|
|
GM 8 GAUGE |

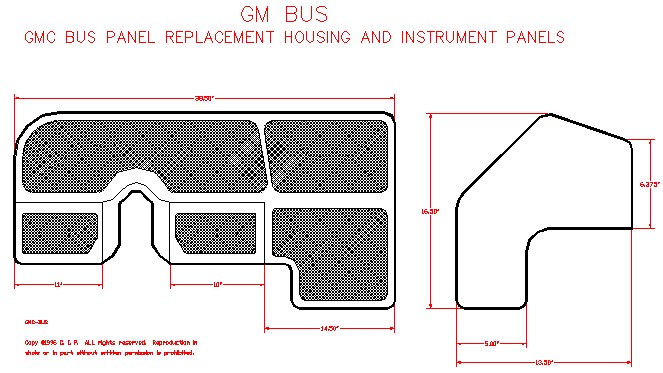

GM HOUSING DIMENSIONS |
|

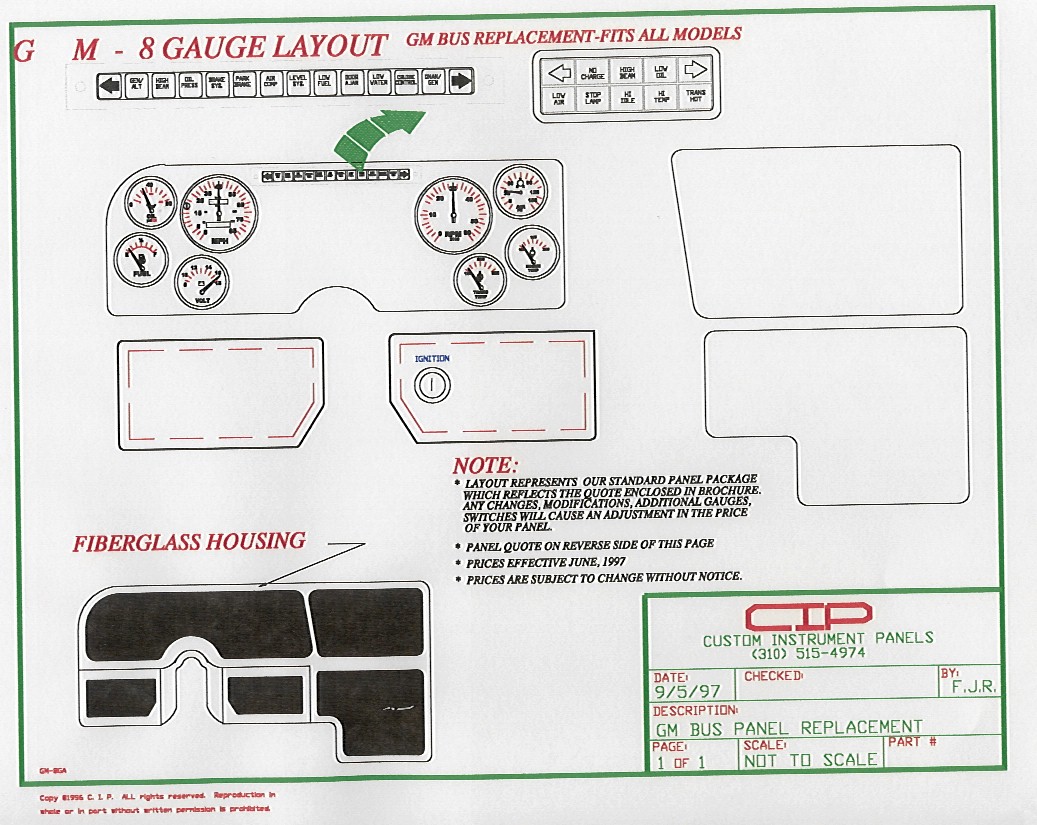

GM 8 GAUGE LAYOUT |
||
|
HARDWARE |
PANELS |
Gauges |
|
Panel mounting screws |
Gauge Panel | Speedometer** |
|
Warning Light Bar |
Radio & CB Panel* | Fuel Gauge |
|

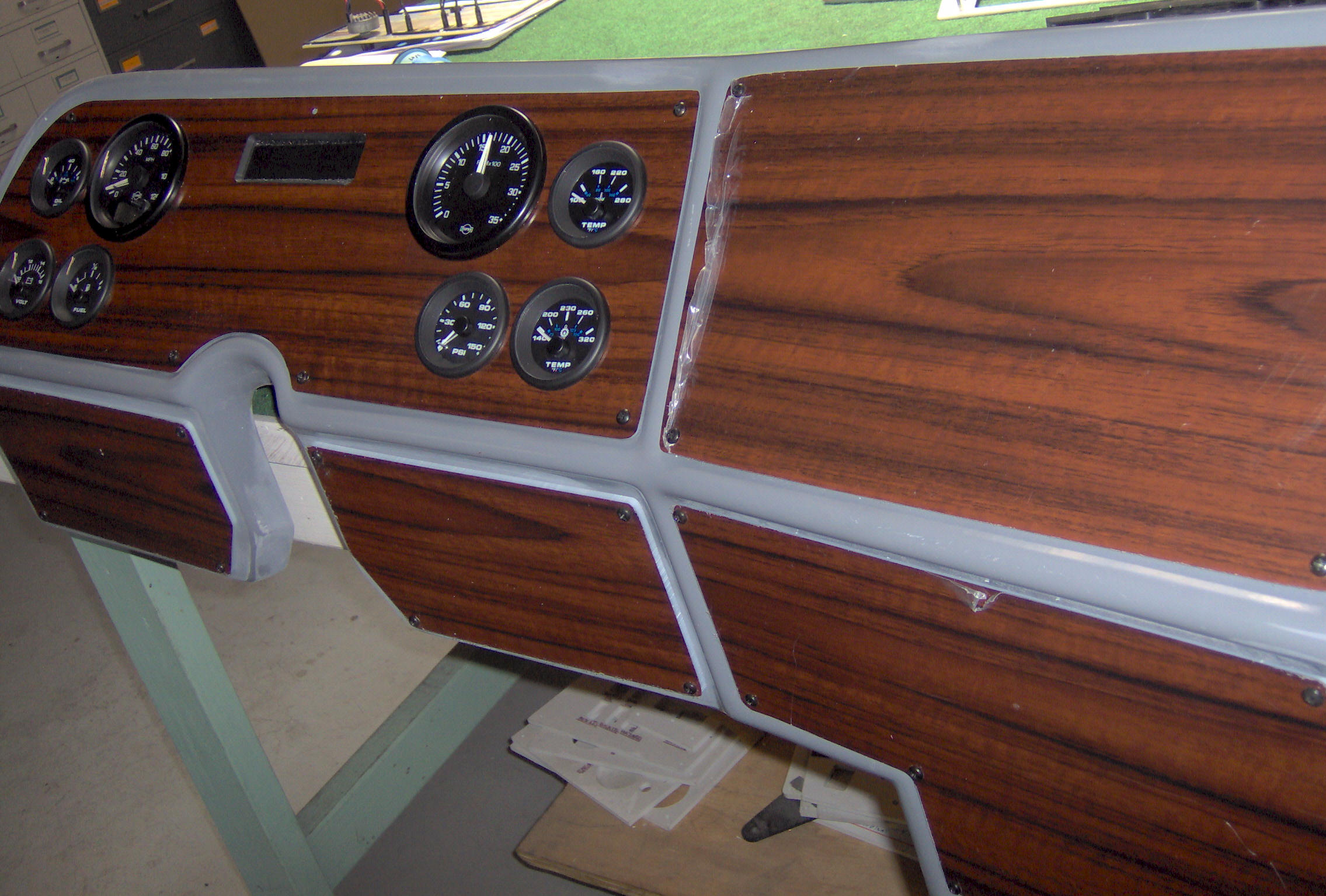

Fiberglass housing with brackets |
Right Side Switch Panel* | Oil Temp or Transmission Gauge ** |
| Left Side Switch Panel* | ||
| Back-Up Monitor Panel * | Oil Pressure Gauge ** | |
|
* Blank Panels only accessories are not included. ** Sending unit included *** 24 volt gauge slightly higher Housing alone Price $395.00
Premier White face gauges are slightly higher call for price
|
||
| Voltmeter-12 or 24*** Volt | ||
| Water Temp. Gauge** | ||
| Air Pressure Single or Duel | ||
| Tachometer** | ||
GRAND TOTAL...............................$1,947.00
(Premier White Face Gauges is an additional $75.00 for 8 gauge system).
Prices effective January1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.
10-GAUGE DASH SYSTEM-12 VOLT
|
|
|
|
GM 10 GAUGE |
GM HOUSING DIMENSIONS |
|

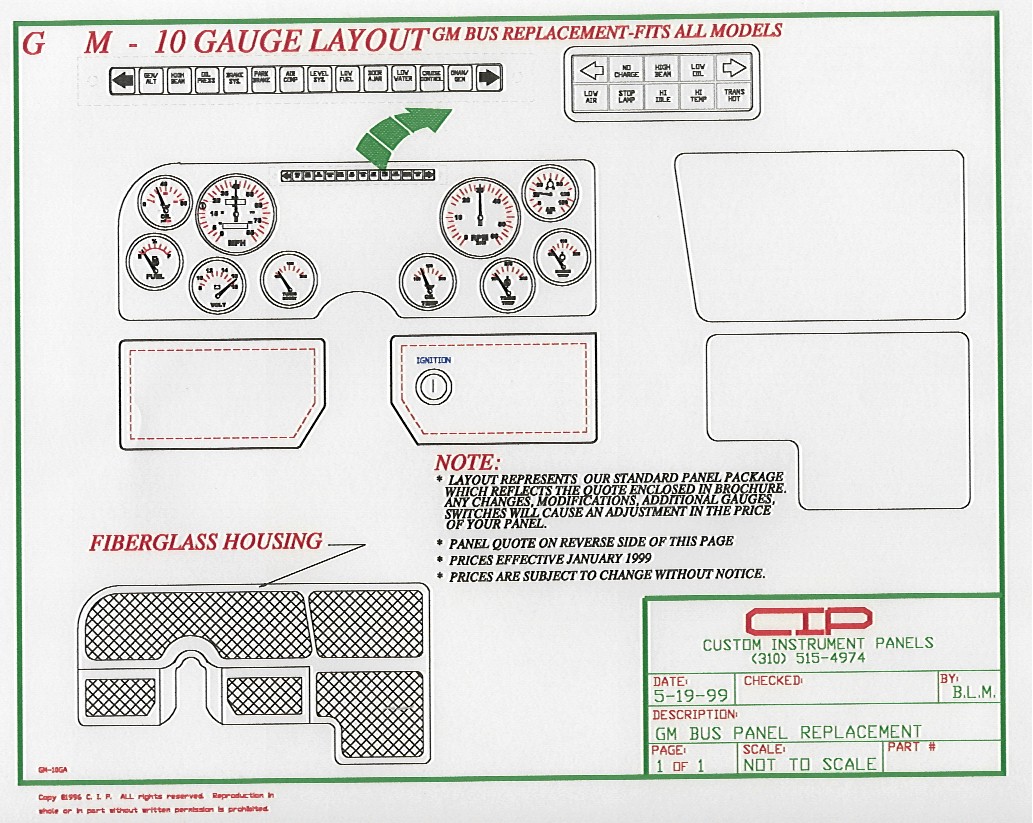

GM 10 GAUGE LAYOUT |
||
|
HARDWARE |
PANELS |
Gauges |
|
Panel mounting screws |
Gauge Panel | Speedometer** |
|
Warning Light Bar |
Radio & CB Panel* | Tachometer** |
|
Fiberglass housing with brackets |
Right Side Switch Panel* | Fuel Gauge |
| Left Side Switch Panel* | Turbo Boost (Pilot not included) | |
|
* Blank Panels only accessories are not included. ** Sending unit included *** 24 volt gauge slightly higher Housing alone Price $395.00
Premier White face gauges are slightly higher call for price
|
Back-Up Monitor Panel * | Oil Temp Gauge ** |
| Oil Pressure Gauge ** | ||
| Voltmeter-12 or 24*** Volt | ||
| Water Temp. Gauge** | ||
| Air Pressure Single or Duel | ||
| Transmission Temp** | ||
TOTAL.....................................................................$1,307.17
(Premier White Face Gauges is an additional $95.00 for 10 gauge system).
Prices effective January 1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

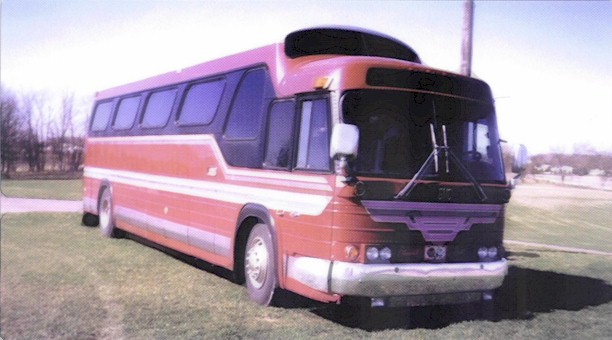

GM 4104
|
|
|
|

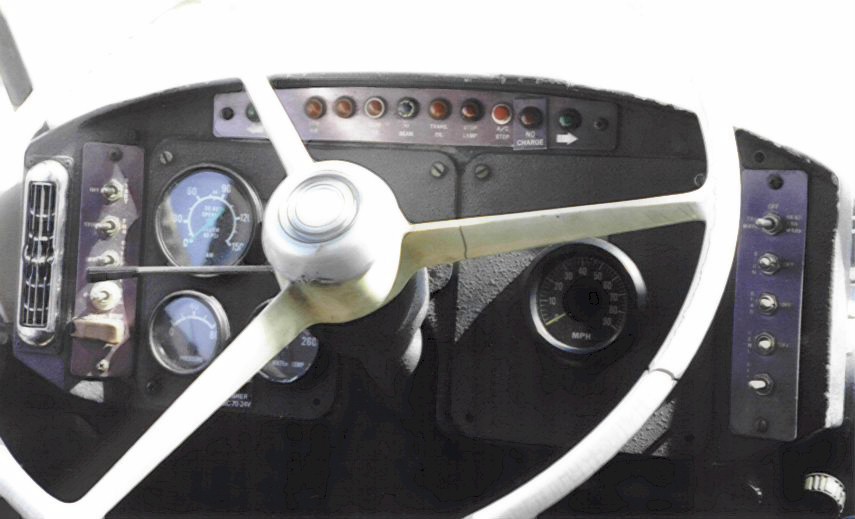

Before |
GM Bus Panel Layout | GM Bus 4104 Replacement |
|
GM 4104 8 GAUGE LAYOUT |
||
|
HARDWARE |
PANELS |
Gauges |
|
Panel mounting screws |
Gauge Panel | Speedometer** |
|
Warning Light Bar |
Fuel Gauge | |
|
(8) Rocker switches (with engraved writing and back lighting |
Oil Temp or Transmission Gauge ** | |
| Oil Pressure Gauge ** | ||
|
Light bar Part # TLB-S503D (see accessory page for details)
** Sending unit included *** 24 volt gauge slightly higher
Premier White face gauges are slightly higher call for price |
||
| Voltmeter-12 or 24*** Volt | ||
| Water Temp. Gauge** | ||
| Air Pressure Single or Duel | ||
| Tachometer** | ||
TOTAL..........................................................$908.43
(Premier White Face Gauges is an additional $95.00 for 10 gauge system).
Prices effective January 1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.
GM 4105 and 4106
|
|
|
|

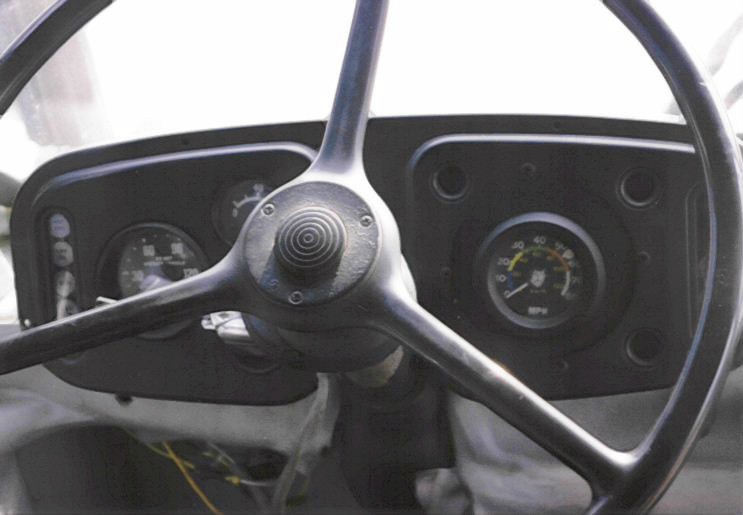

Before |
GM Bus Panel Layout | GM Bus 4105 & 4106 |
|
GM 4105 and 4106- 8 GAUGE LAYOUT |
||
|
HARDWARE |
PANELS |
Gauges |
|
Panel mounting screws |
Gauge Panel | Speedometer** |
|
Warning Light Bar |
Fuel Gauge | |
|
(7) Rocker switches Dash Light Dimmer Control |
Oil Temp or Transmission Gauge ** | |
| Oil Pressure Gauge ** | ||
|
Light bar Part # TLB-L105A (see accessory page for details)
** Sending unit included *** 24 volt gauge slightly higher Premier White face gauges are slightly higher call for price
|
||
| Voltmeter-12 or 24*** Volt | ||
| Water Temp. Gauge** | ||
| Air Pressure Single or Duel | ||
| Tachometer** | ||
TOTAL w/Switches...............$915.25
TOTAL without Switches..........................$763.18
(Premier White Face Gauges is an additional $75.00 for 8 gauge system).
Prices effective January 1, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.
