Custom Instrument Panels



Please see products section for gauges. The prices for individual gauges has changed. please call for new gauge prices and sending unit's , radio's, monitors and other accessories.



Click on Information for Panel Finishes and vinyl colors



Click on Repair & Repair 2 to see restore work done on GMC's.

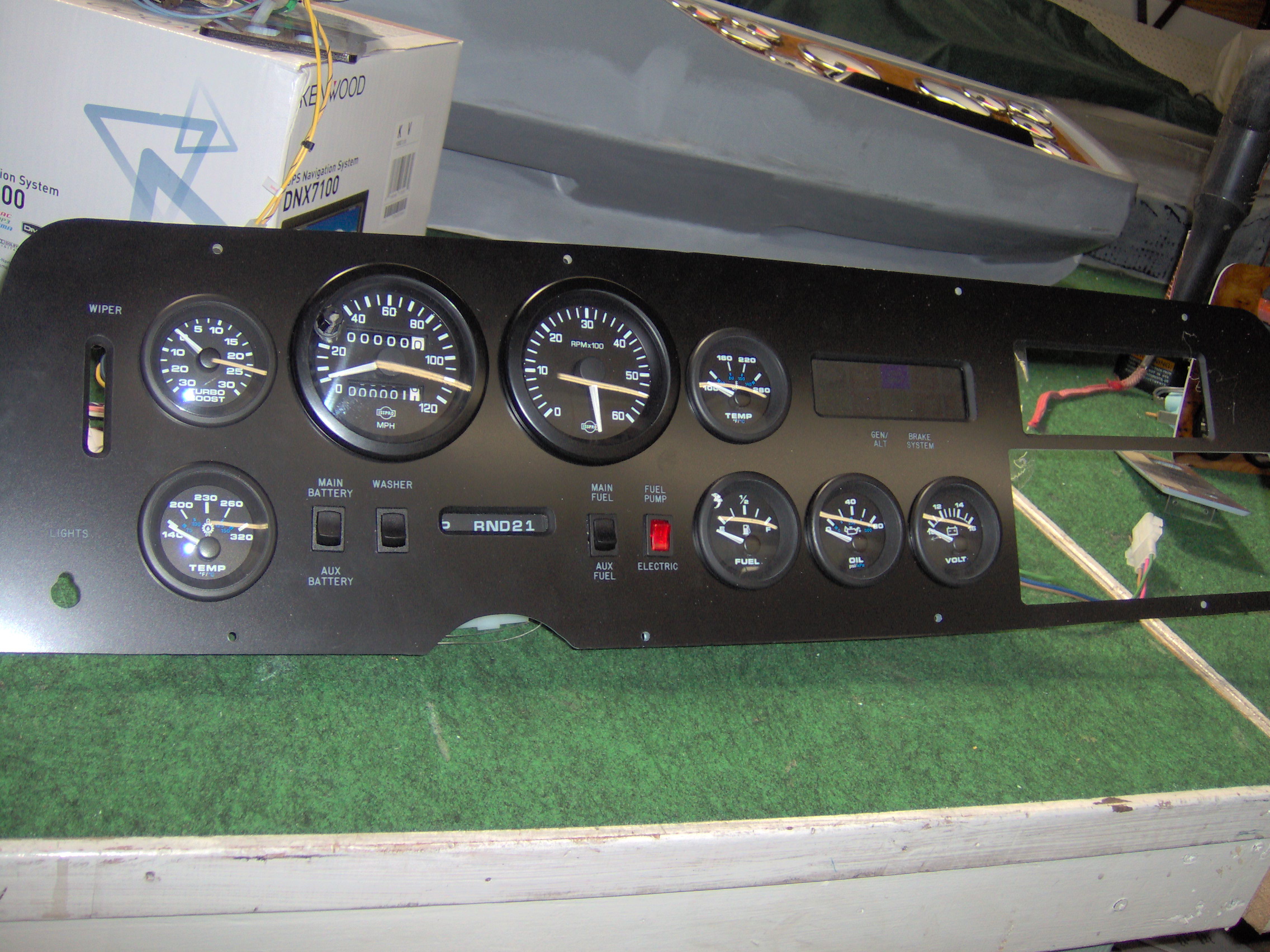

Basic Board CIP-2596

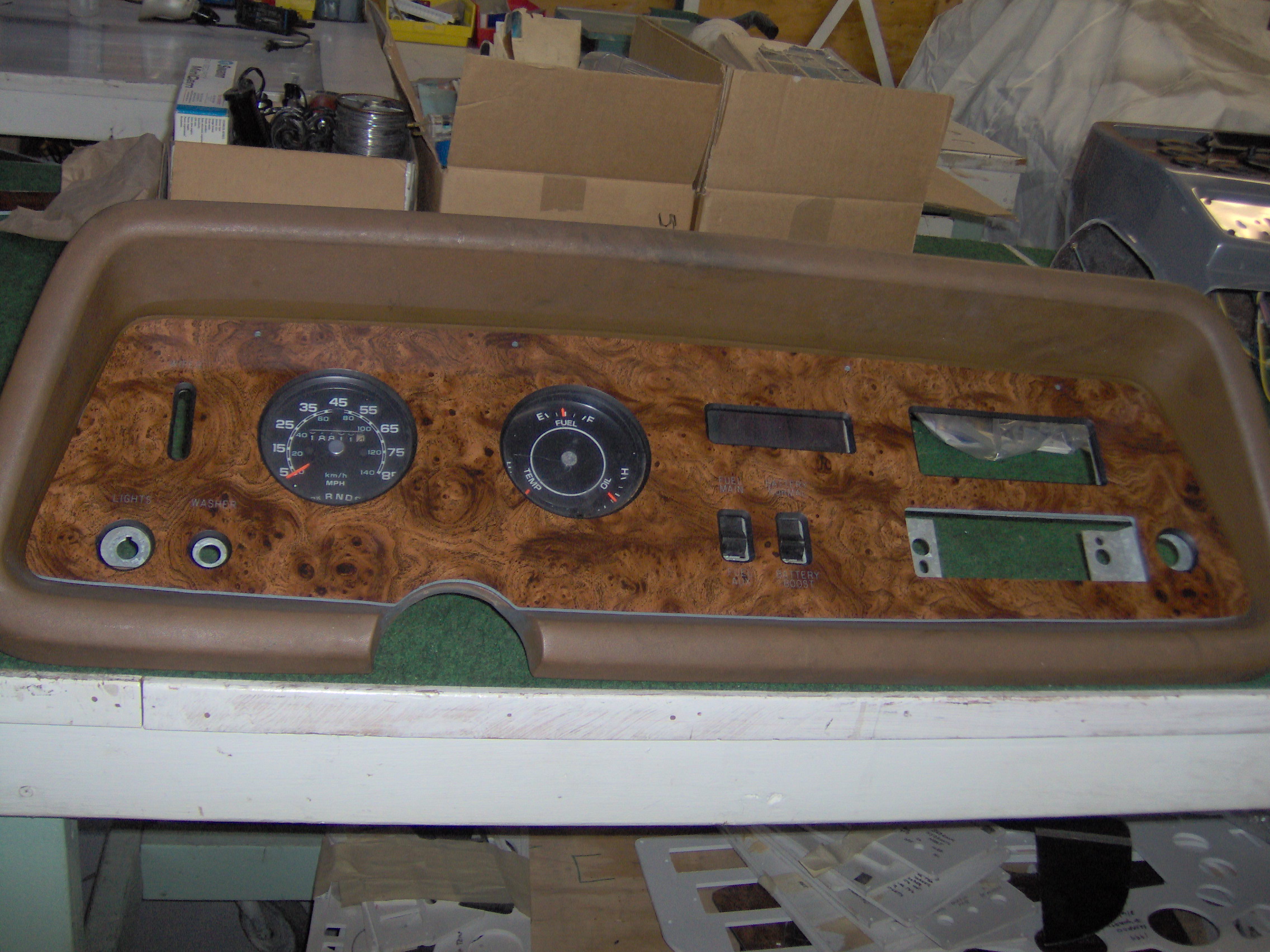

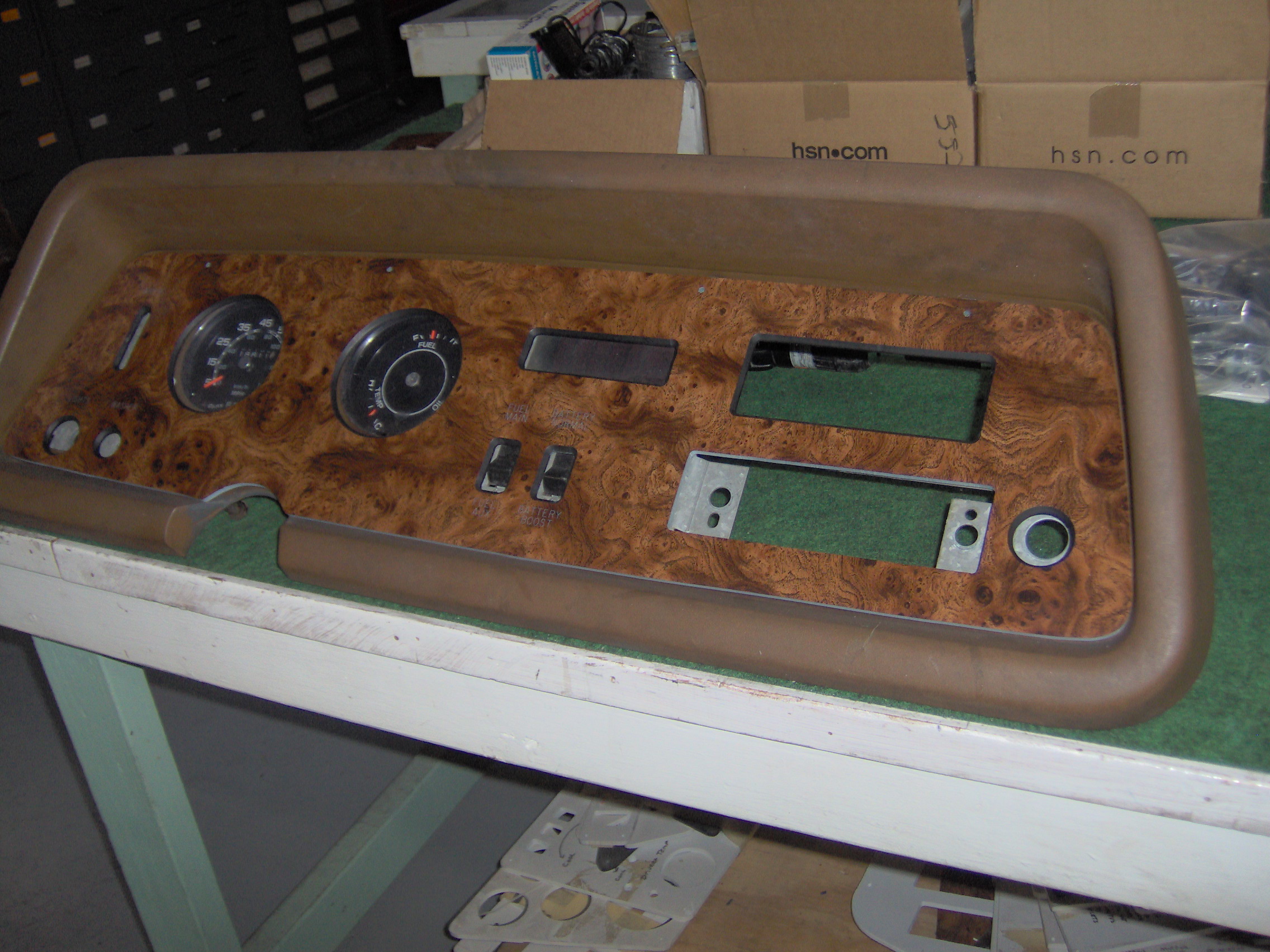

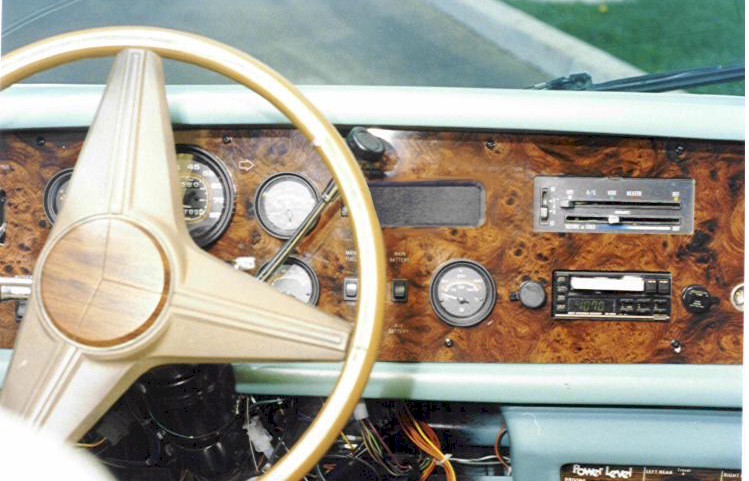

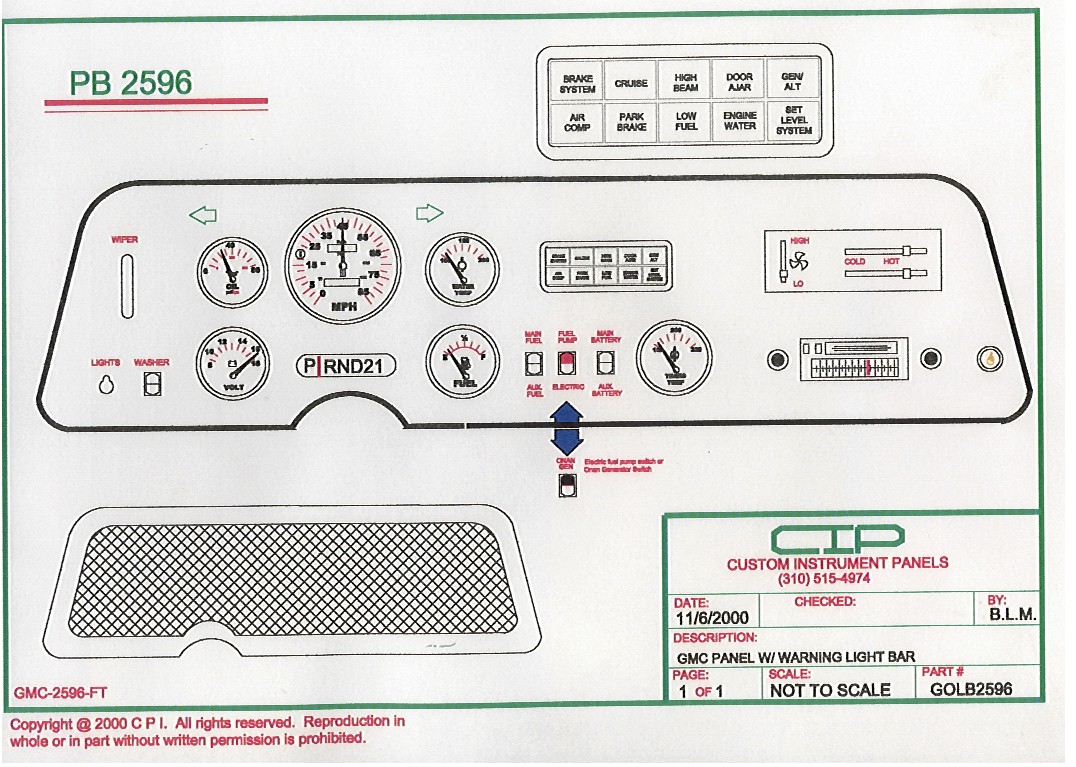

gmc 2596 pic.jpg (99530 bytes) cip 2596.jpg (253381 bytes)
CIP-2596 Basic Board  CIP-2596 Layout

Hardware:

  • Panel mounting screws
  • Warning Light Bar

Panels:

  • Gauge Panel with Engraved Turn Signals

Gauges:

  • Speedometer
  • Fuel Gauge*
  • Voltmeter-12 Volt
  • Oil Pressure Gauge with 80psi Sender
  • Transmission Temp Gauge with Sender
  • Water Temp. Gauge with Sender
Switches:
  • Washer
  • Trip Reset
  • Fuel Tank Selector Switch
  • Battery Boost Switch

Grand Total Price $1,472.00

*Sending Unit 90 ohm



* Basic installation consists of the replacement of the original GMC wiring. All aftermarket gauges, switches and repairs to the dash etc.. will be charged extra by the hour



Prices effective January 1, 2023. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.



Deluxe Board CIP-2626

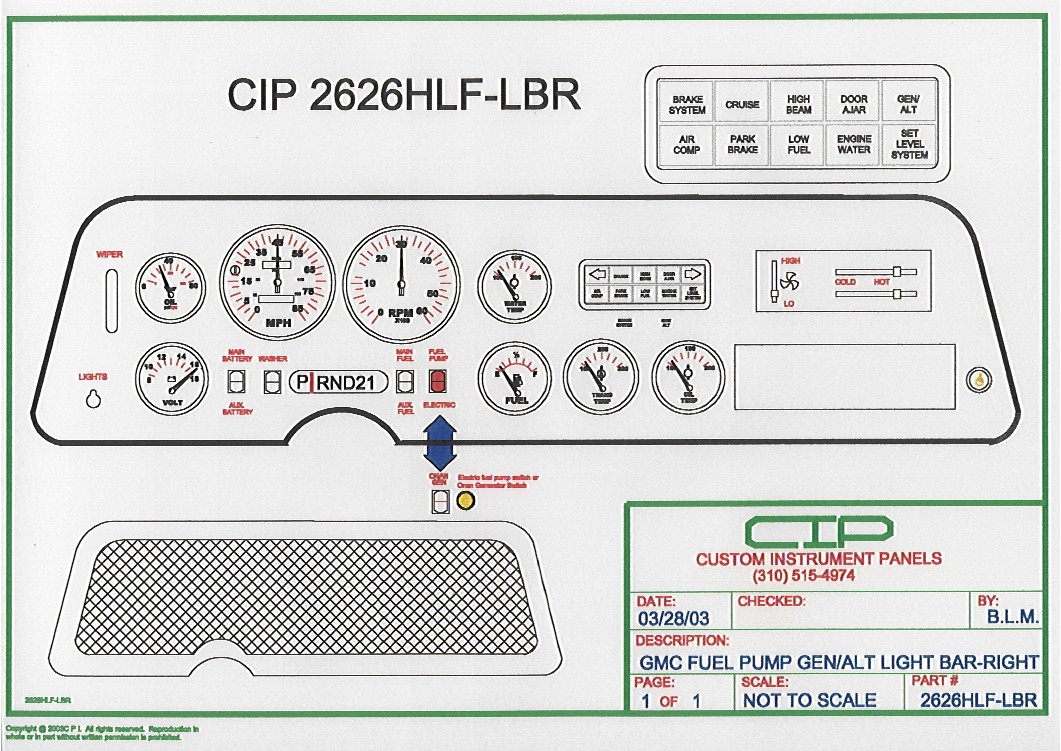

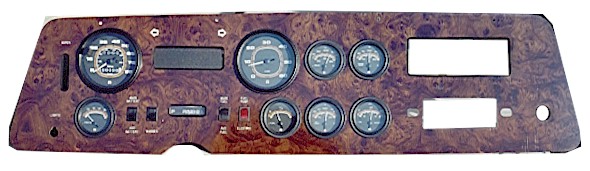

cip 2626hlf-lbr.jpg (256670 bytes)
CIP-2626 Board CIP-2626 Layout

Hardware:

  • Panel mounting screws
  • Warning Light Bar

Panels:

  • Gauge Panel with Engraved Turn Signals

Gauges:

  • Speedometer
  • Tachometer
  • Fuel Gauge*
  • Voltmeter-12 Volt
  • Oil Pressure Gauge with 80psi Sender
  • Oil Temp Gauge with Sender
  • Transmission Temp Gauge with Sender
  • Water Temp. Gauge with Sender
Switches:
  • Washer
  • Trip Reset
  • Fuel Tank Selector Switch
  • Battery Boost Switch

Grand Total Price $1,685.00

*Sending Unit 90 ohm



* Basic installation consists of the replacement of the original GMC wiring. All aftermarket gauges, switches and repairs to the dash etc.. will be charged extra by the hour



Prices effective January 1, 2023. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

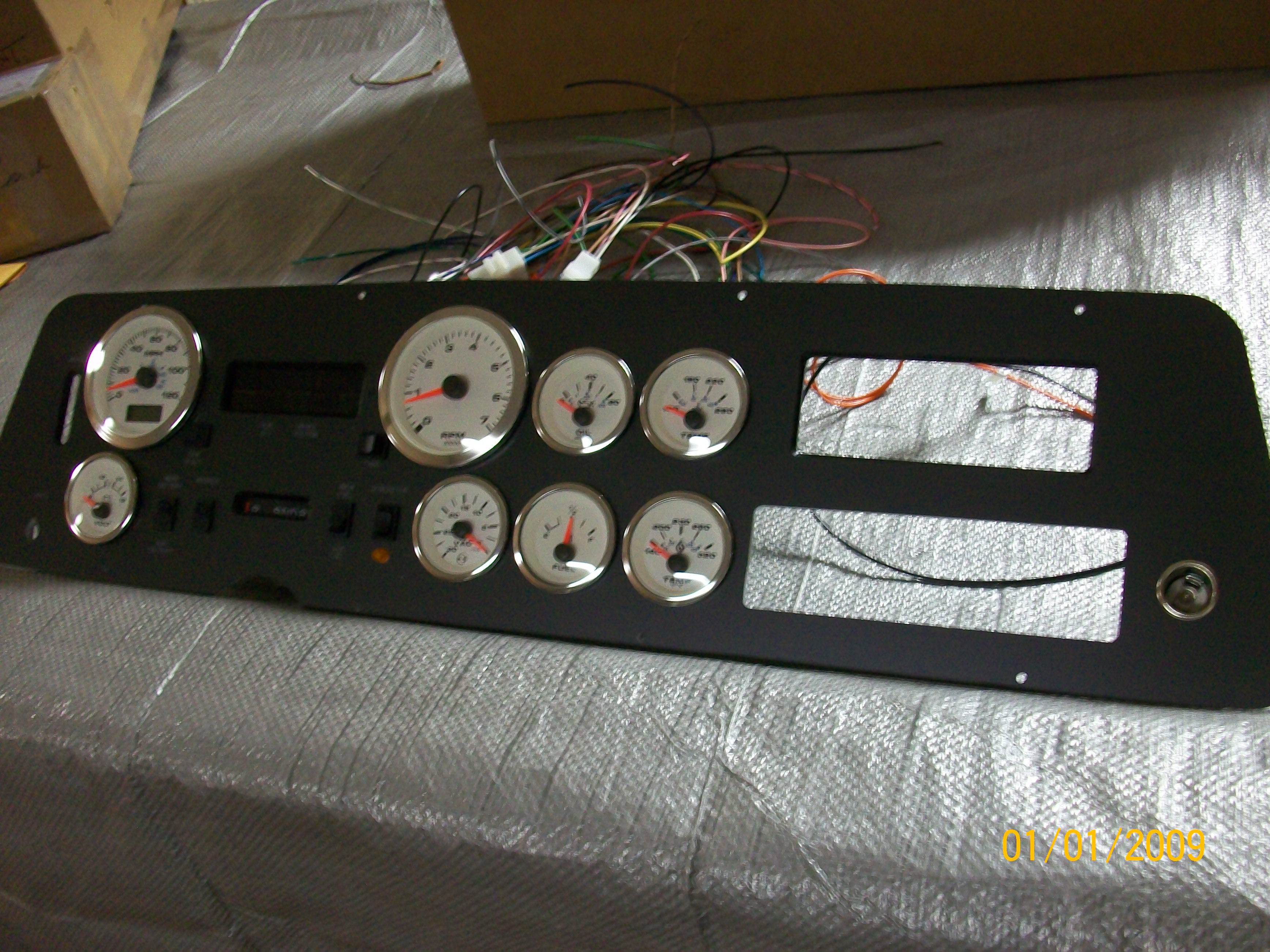

Deluxe Board CIP-2626/CTT

CIP-2626/CTT Premier Style Gauges CIP-2626/CTT Premier White Style Gauges



Hardware:

  • Panel mounting screws
  • Warning Light Bar

Panels:

  • Gauge Panel

Gauges:

  • Speedometer
  • Tachometer
  • Fuel Gauge*
  • Voltmeter-12 Volt
  • Oil Pressure Gauge with 80psi Sender
  • Oil Temp Gauge with Sender
  • Transmission Temp Gauge with Sender
  • Water Temp. Gauge with Sender
Switches:
  • Washer
  • Electric Fuel Pump/ or Generator
  • Fuel Tank Selector Switch
  • Battery Boost Switch
  • Trip Reset
  • Accessory

Grand Total Price $1,737.00

*Sending Unit 90 ohm



* Basic installation consists of the replacement of the original GMC wiring. All aftermarket gauges, switches and repairs to the dash etc.. will be charged extra by the hour



Prices effective January 1, 2023. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

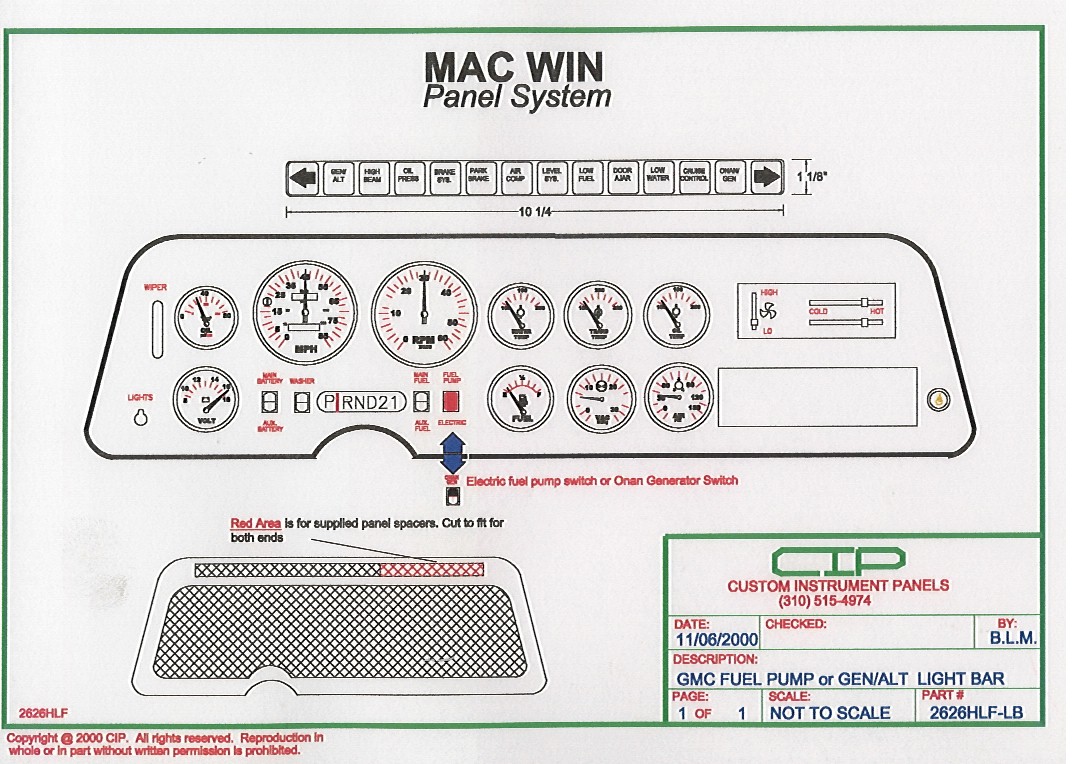

MAC Wind Panel CIP-MWR10

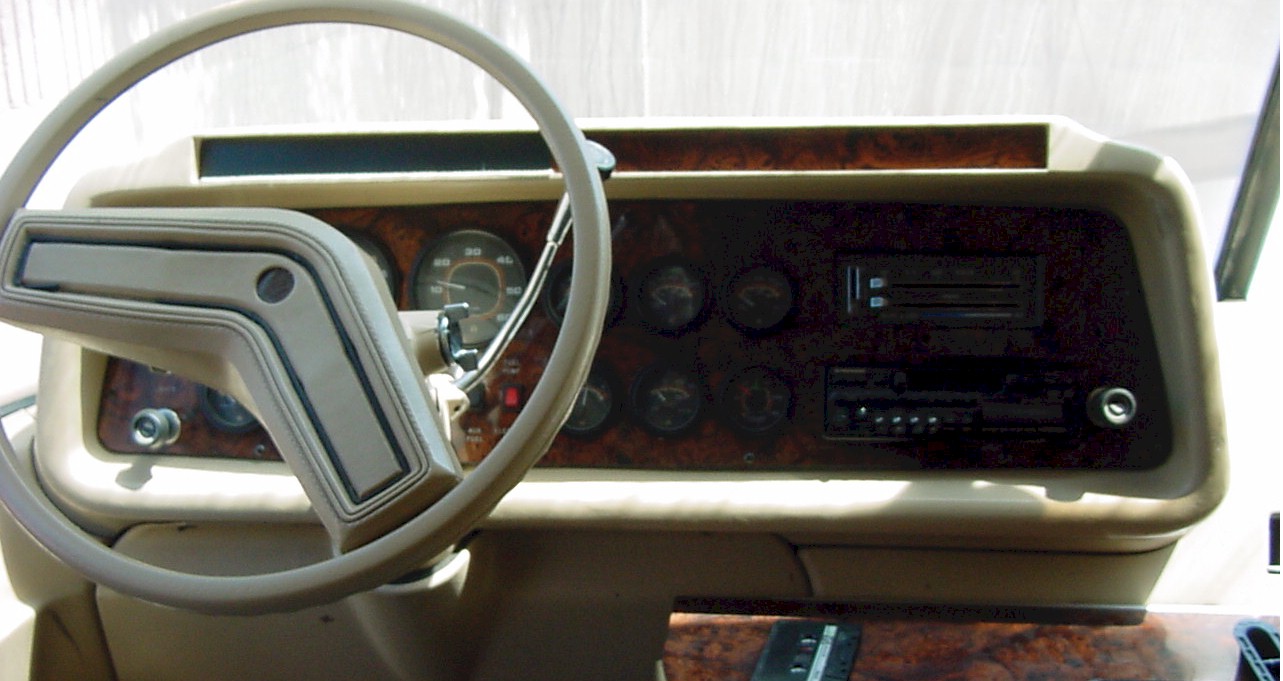

mac wind.jpg (246198 bytes)
CIP-MWR10 System MWR10 Layout CIP-MWR10 System

Hardware:

  • Panel mounting screws
  • Fiberglass Housing
  • Warning Light Bar

Panels:

  • Gauge Panel

Gauges:

  • Speedometer with Trip Odometer
  • Tachometer
  • Fuel Gauge*
  • Voltmeter-12 Volt
  • Oil Pressure Gauge with 80psi Sender
  • Oil Temp Gauge with Sender
  • Transmission Temp Gauge with Sender
  • Water Temp. Gauge with Sender
  • Vacuum Gauge
  • Air Pressure Gauge
Switches:
  • Washer
  • Trip Reset
  • Fuel Tank Selector Switch
  • Battery Boost Switch

Grand Total Price $1,947.00

Macwind Housing $535.00



* Basic installation consists of the replacement of the original GMC wiring. All aftermarket gauges, switches and repairs to the dash etc.. will be charged extra by the hour *Sending Unit 90 phm



Prices effective January 1, 2023. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

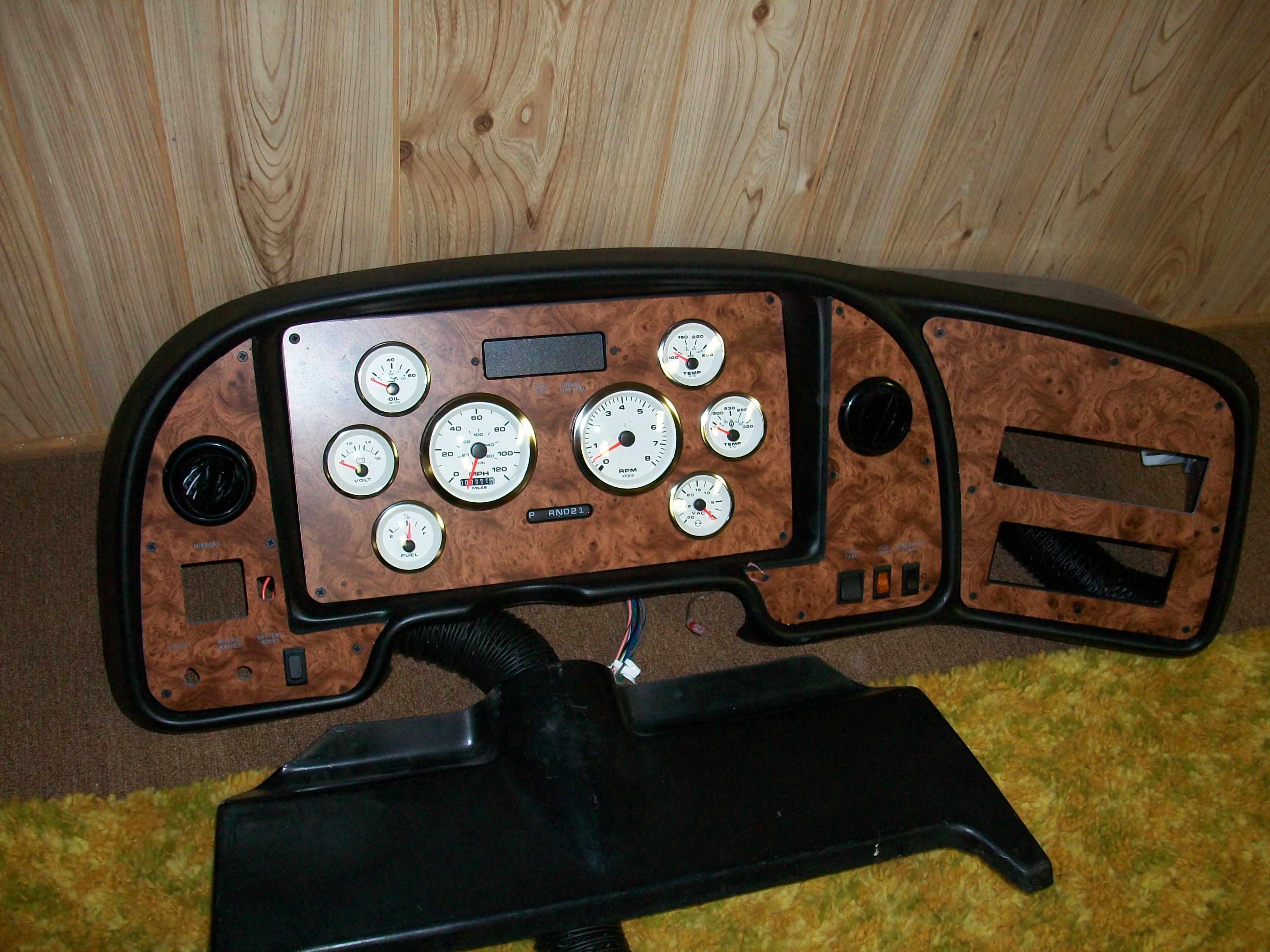

GMC Supreme II Basic Panel System

All GMC Motorhome Models

  GMC Supreme Basic II



Dash Layout Gauge Panel Radio Panel Left Side Panel Right Side Panel



Hardware:

  • Fiberglass Housing with Mounting Bracket
  • Steering Wheel Lowering Bracket
  • Four (4) Panels

Center Gauge Panel with Tel-Tale Light Bar , plus Shift Indicator

  • GPS Speedometer with Speed Sensor
  • 6K Tachometer
  • 090 ohm Fuel Gauge
  • 12 Voltmeter
  • 0-80 Oil Pressure Gauge with Sender
  • Engine Water Temp Gauge/with sender
  • Transmission Temp Gauge with Sender
  • Vacuum Gauge

Switches:
Left Side Switch Panel
  • Original Headllight Switch
  • Original Wiper Control
  • Washer
  • Battery Boost Switch
  • Trip Reset Switch
 Right Side Switch Panel

    Fuel Tank Switch
    Electric Fuel Pump Switch
    ICC Flasher
    ACC. #1 Switch

  AC VENTS  FOR 77-78 ONLY WITH KIT

  Right Hand AC Panel

   Four (4) Mounting Studs for AC Control                                                         12 Volt ACC plug/or USB Port                                                                          Blank Space for Radio

   Plus

   Wire Pins                                                                                                            Installition Manual





Grand Total Price $2,279.00
Fiberglass Housing Only $725.00
Blank Panels Only (No holes cut) $175.00

Blank Panels only; accessories are not included

1977 and 1978 GMC model years will need to purchase an AC Kit with the Supreme II Dash System $255.55

* Basic installation consists of the replacement of the original GMC wiring. All aftermarket gauges, switches and repairs to the dash etc.. will be charged extra by the hour



Prices effective January 1, 2023. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

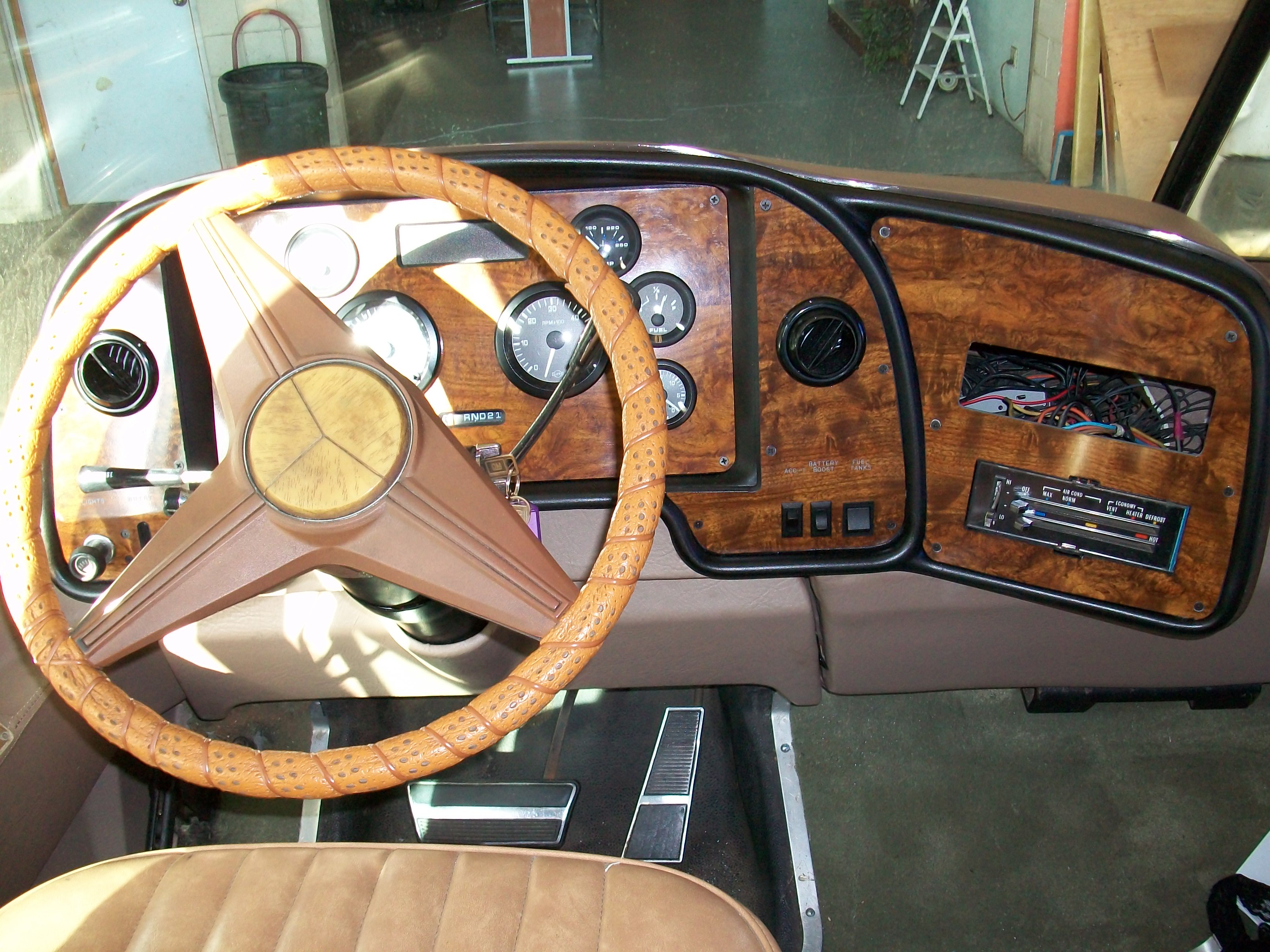

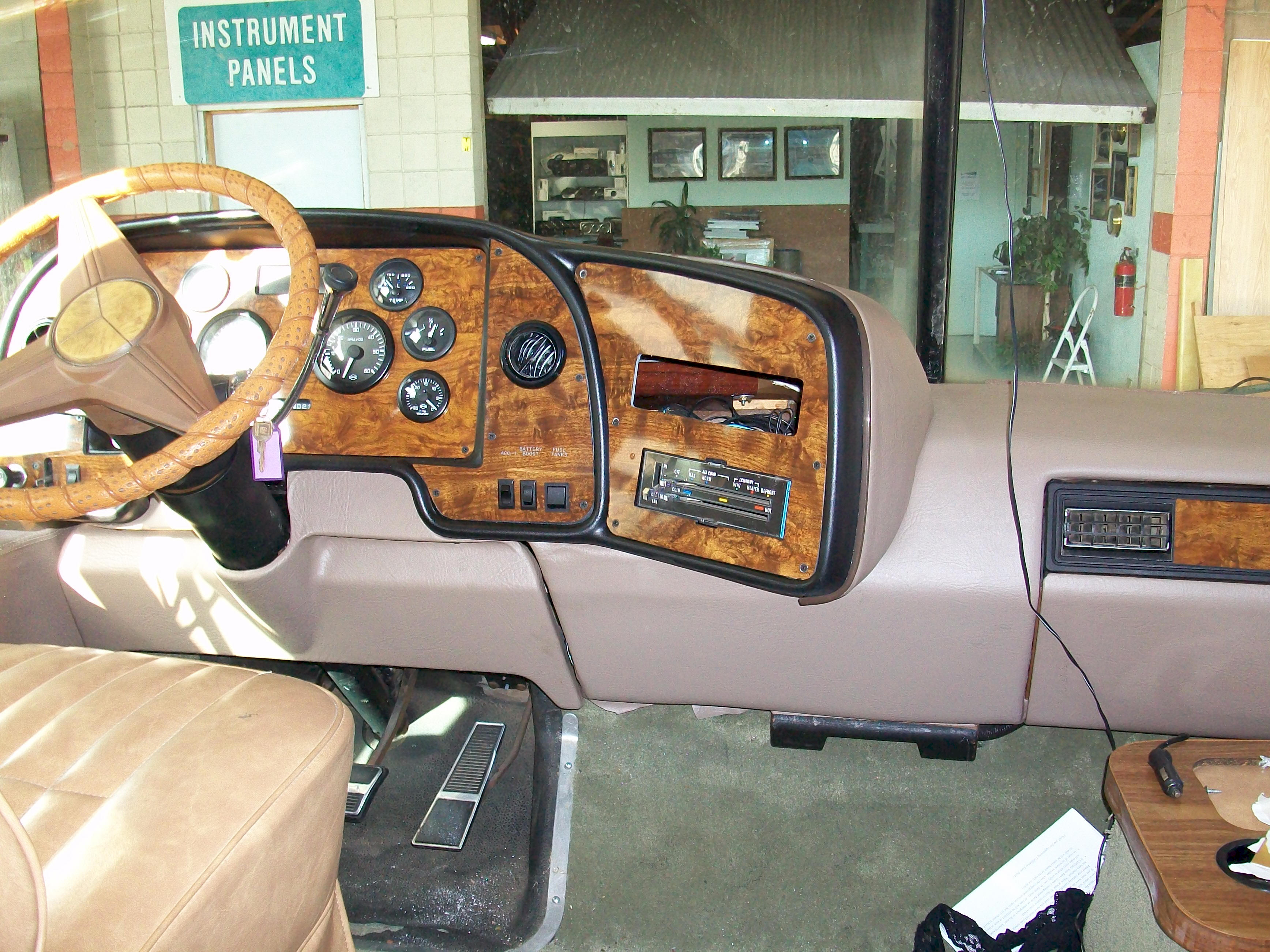

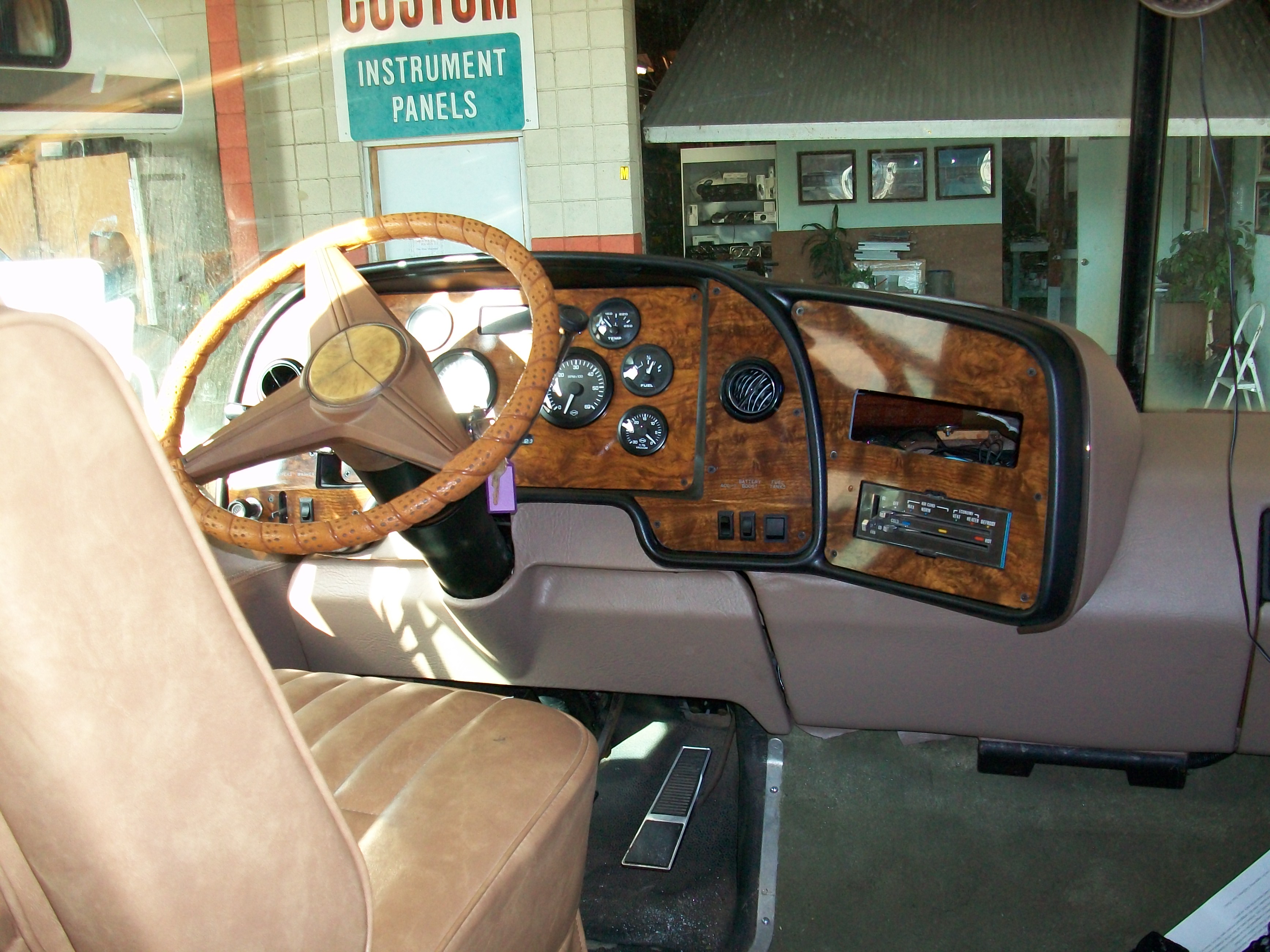

  Installation Pictures

GMC Supreme II Deluxe Panel System

All GMC Motorhome Models


  GMC Supreme Deluxe II




Dash Layout Gauge Panel Radio Panel Left Side Panel Right Side Panel



Hardware:

  • Panel mounting screws
  • Fiberglass Housing with Brackets
  • Four (4) Panels
  • Steering Wheel Lowering Bracket

Panels:

  • Gauge Panel
  • Radio and Heater Panel (Original Heater Control on this panel)
  • Headlight Panel (Left Side)
  • Switch Panel (Right Side)

Center Gauge Panel



  • Tale-Tell Warning Light Bar, Plus Shift Indicator
  • GPS Speedometer with Sender
  • 6K Tachometer
  • 0-90 Ohm Fuel Gauge
  • Voltmeter 12 Volt
  • Oil Pressure with 0-80 psi Sender
  • Engine Water Temp with Sender
  • Transmission Temp with Sender
  • Engine Oil Temp with Sender
  • Vacuum Gauge
    Left Hand Switch Panel
  • Original Headlight  Switch                     .
  • Trip Reset
  • Original Wiper Control
  • Fuel Tank- Main/Aux
  • Battery Boost
  • Washer
  • AC Vent 77-78 Only
    RIGHT HAND SWITCH PANEL
          Generator Switch with Light
          ICC Flasher
          Fog Light
          ACC: #1
          Air Gauge
         AC Vent 77-78 Only

 Right Hand AC Panel

       Four (4) Mounting Screws for AC Control
       12 Volt ACC Plug/or USB Port
       Blank Space for Radio

Grand Total Price $2,487.70
Fiberglass Housing Only $725.00
Blank Panels Only (No holes cut) $175.00

Blank Panels only; accessories are not included

1977 and 1978 GMC model years will need to purchase an AC Kit with the Supreme II Dash System $225.55





NGMC-2010 Panel System

All GMC Motorhome Models

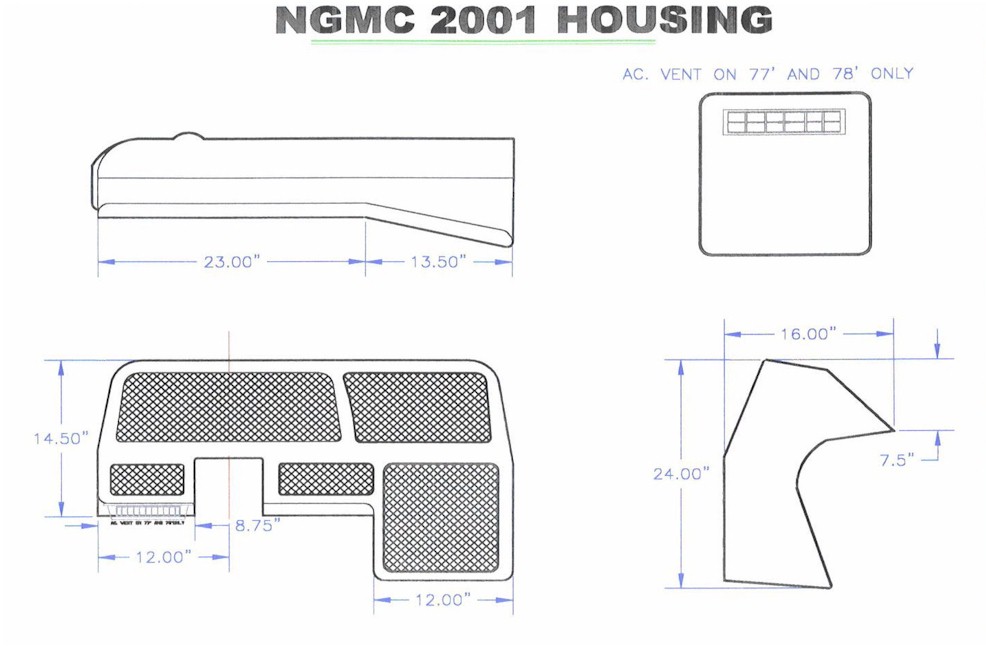

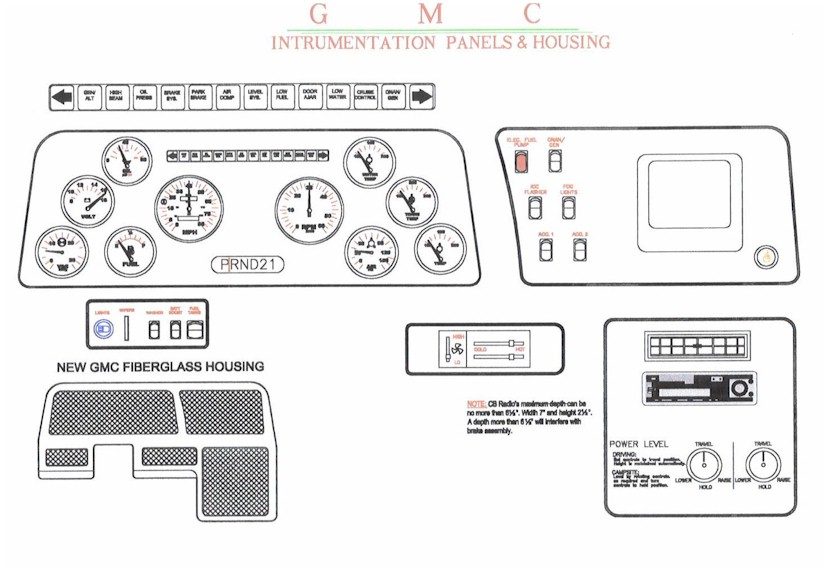

NGMC Panel System NGMC-2016 9 Gauge Layout NGMC 05 Housing Dimensions NGMC 9 Gauge panel Layout

Hardware:

  • Panel mounting screws
  • Fiberglass Housing with Brackets
  • Warning Light Bar
  • Steering Wheel Lowering Bracket

Panels:

  • Gauge Panel
  • Radio and CB Panel*
  • Headlight Panel (Left Side)
  • Heater Control Panel (Right Side)
  • Back-Up Monitor Panel*

Gauges:

  • Speedometer
  • Tachometer
  • Oil Temperature Gauge
  • Fuel Gauge
  • Voltmeter 12-Volt
  • Oil Pressure Gauge**
  • Transmission Temp Gauge**
  • Water Temp Gauge**
  • Engine Oil Temp Gauge
  • Vacuum Gauge
Switches:
  • Washer
  • Battery Boost
  • Fuel Tanks
  • Onan Generator
  • ICC Flasher
  • Electric Fuel Pump
  • Fog Lights
  • Trip Reset
  • AcC-1
Grand Total Price $2,596.65

AC Kit for 1977 and 1978 $225.55
Fiberglas Housing Only $735.00
Blank Panels Only (No holes cut) $175.00

*Blank Panels only; accessories are not included

**Sending Units Included

* Basic installation consists of the replacement of the original GMC wiring. All aftermarket gauges, switches and repairs to the dash etc.. will be charged extra by the hour

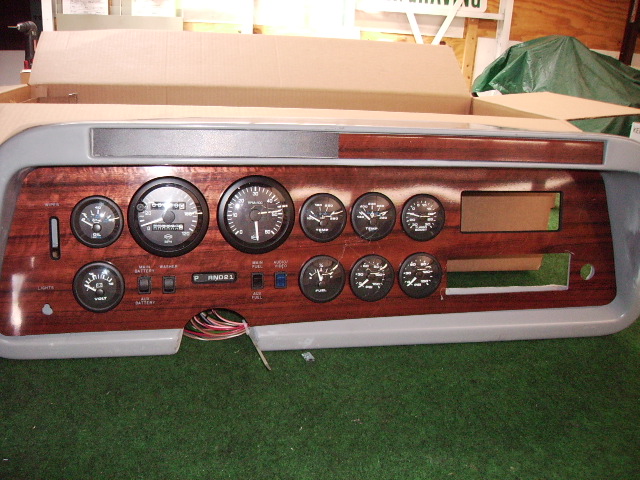

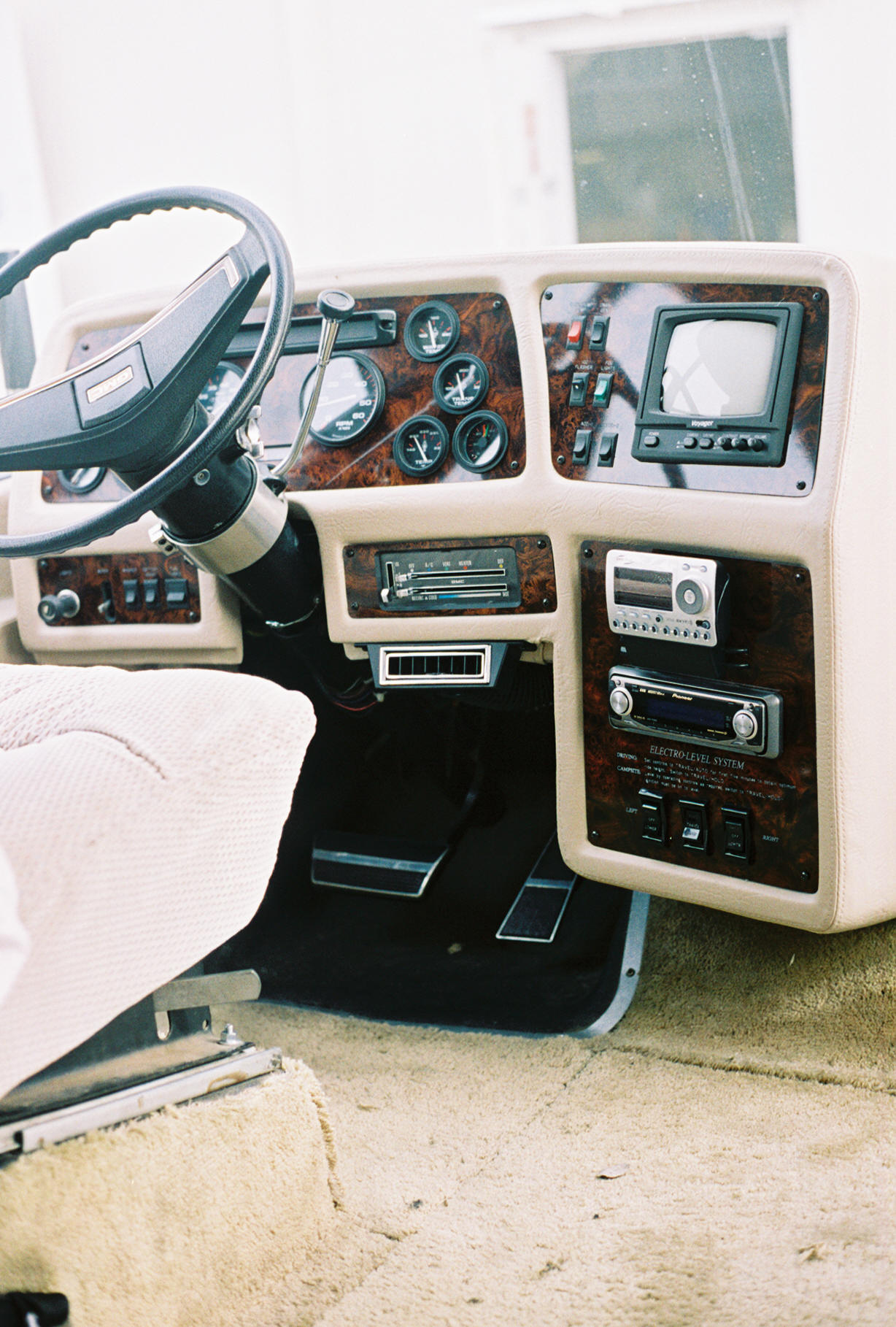

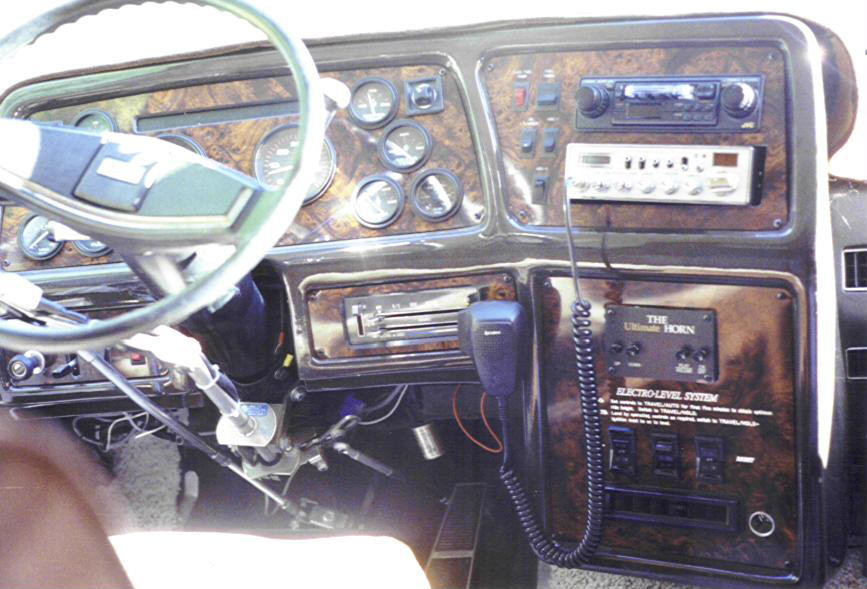

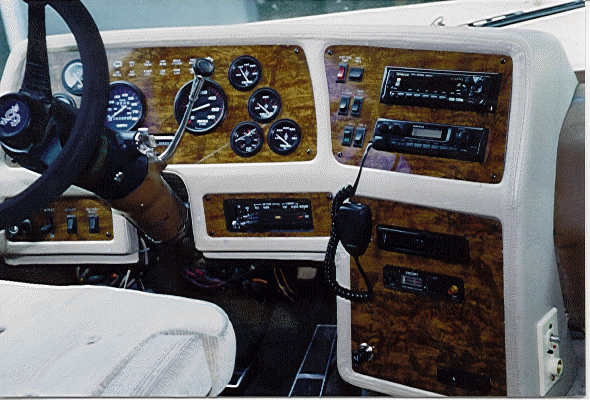

NGMC Installation Gallery

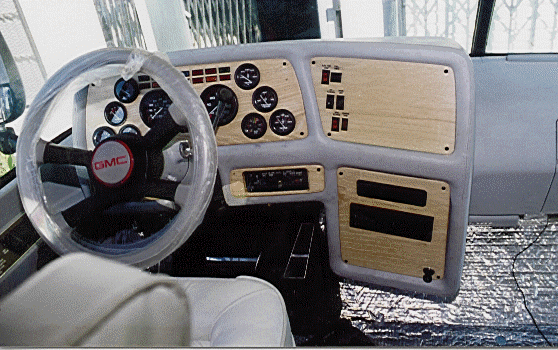

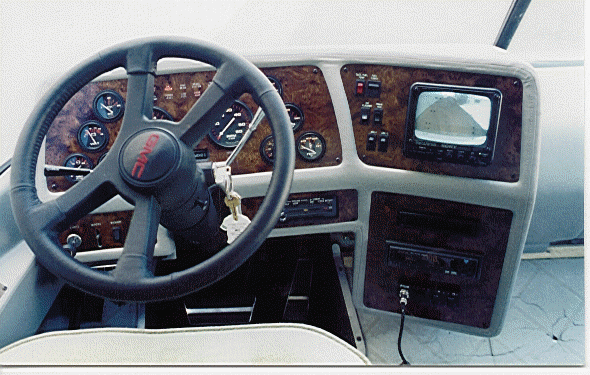

NGMC-998 NGMC-998 with back-up monitor NGMC-998 with LCD Screen Monitor

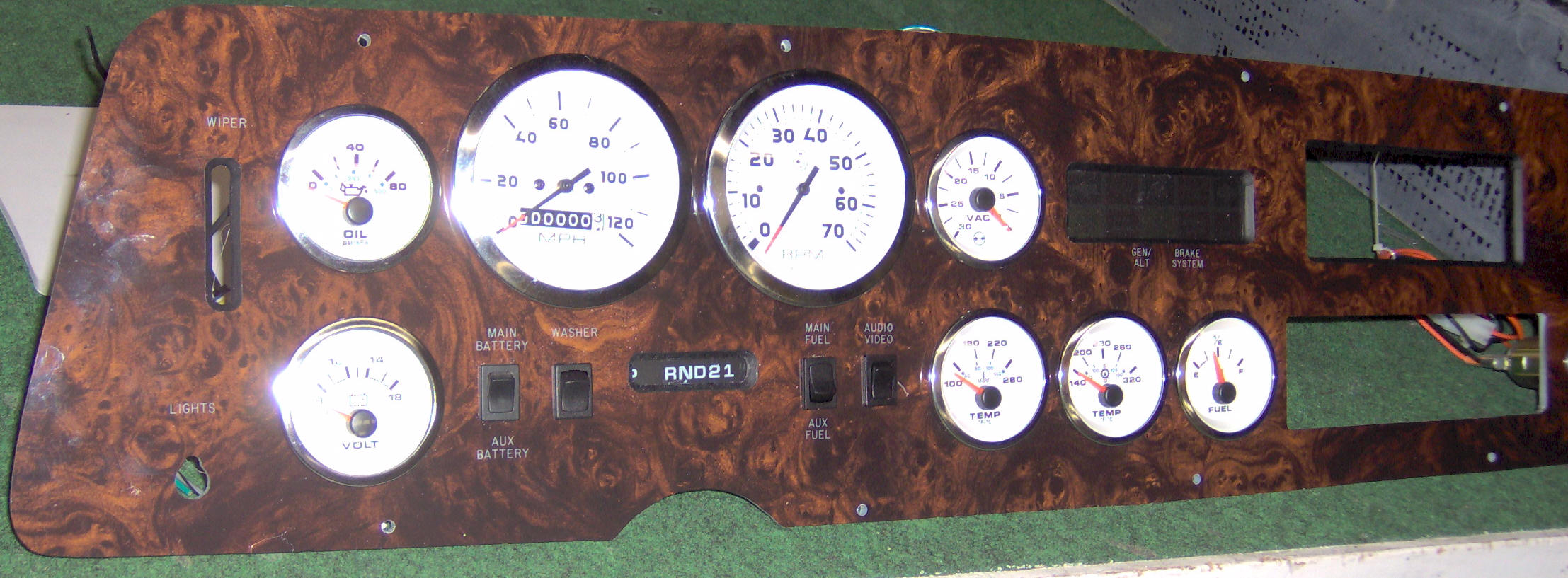

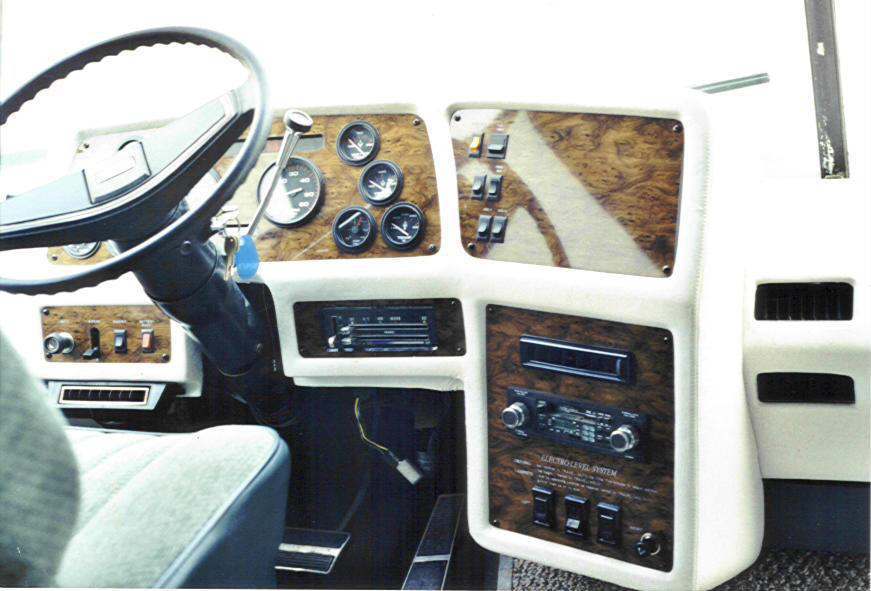

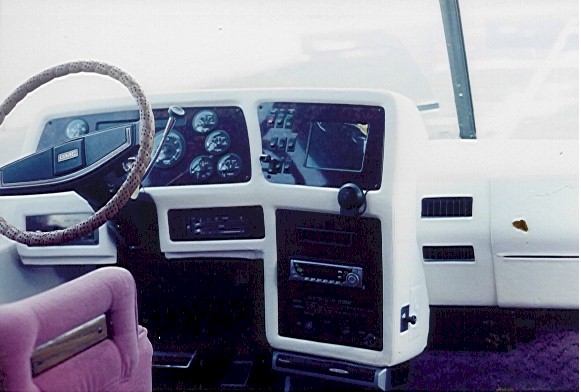

NGMC-998 Real Oak wood panels NGMC 2001 NGMC-2001 Lacquer Painted

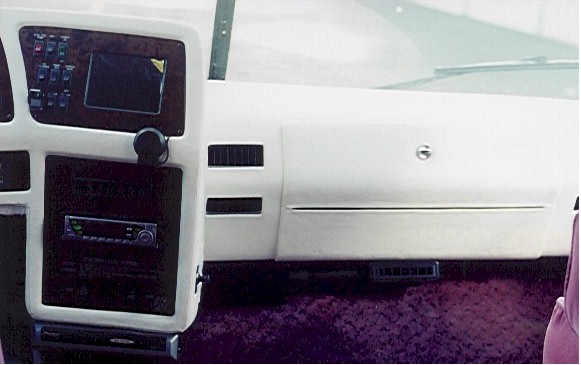

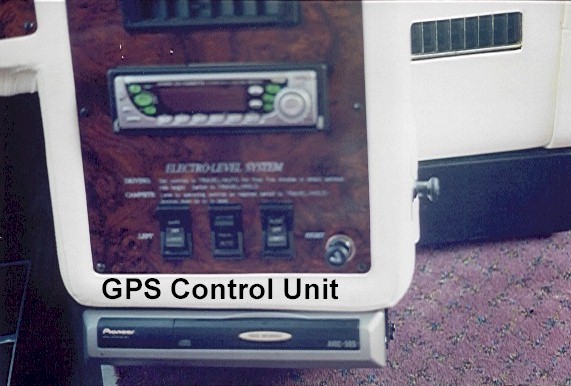

LCD Color Screen/GPS & Back-up GPS Voice Control Speaker GPS Control Unit

New For The GMC

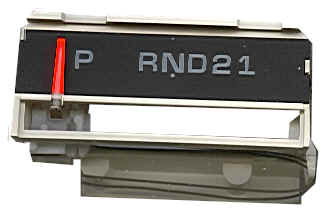

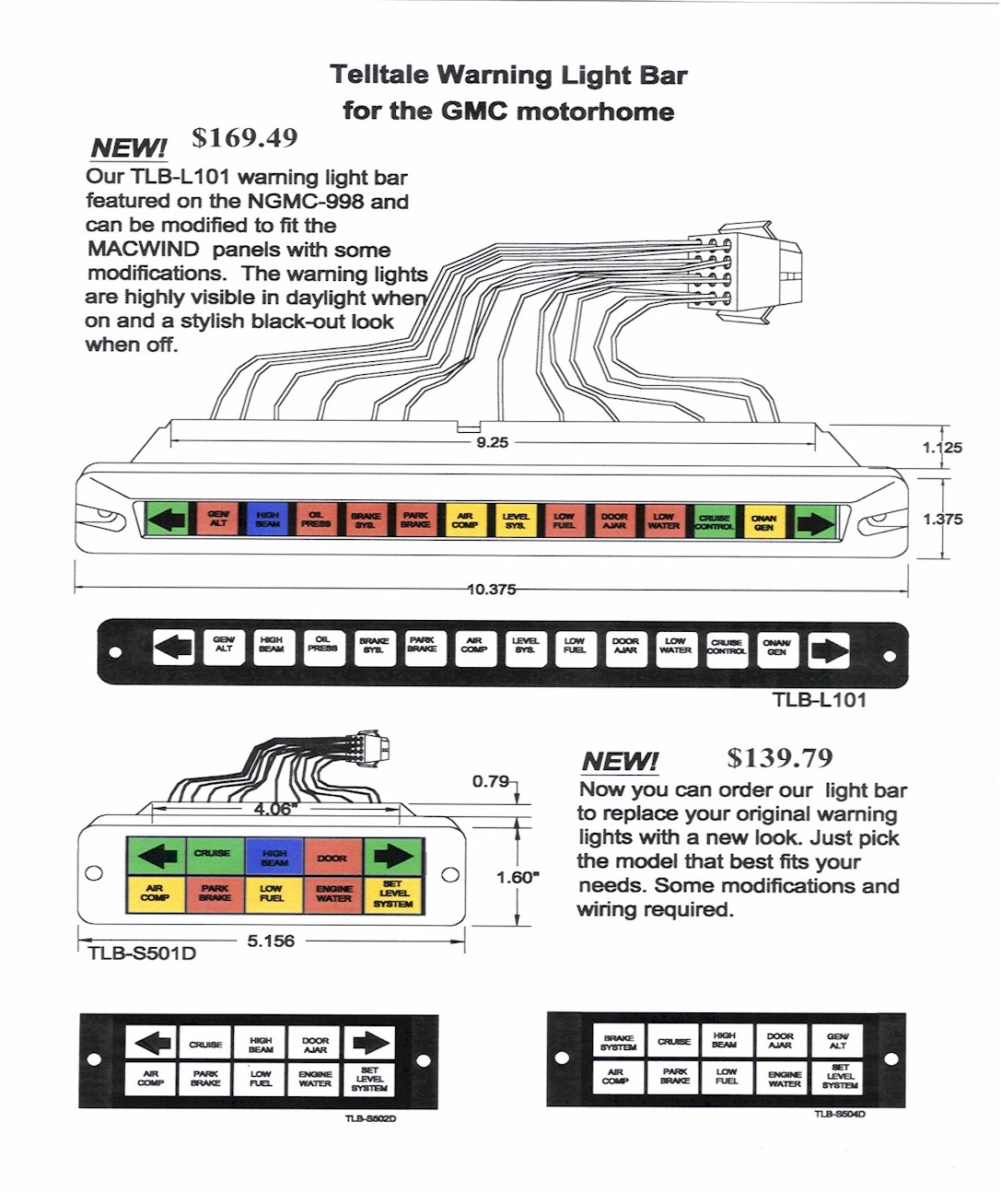

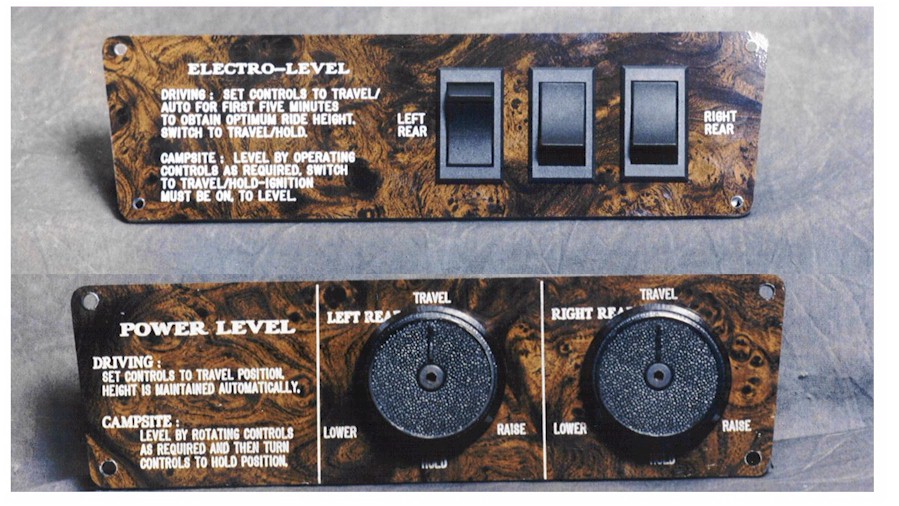

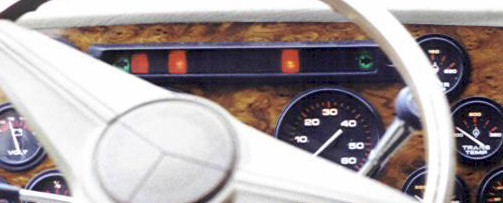

14 light Bar $235.75 -10 light bar $193.35 Electro Level or Power Level Air System Panels (Panels Only) $49.50 Gear Shifter with built-in light $177.90

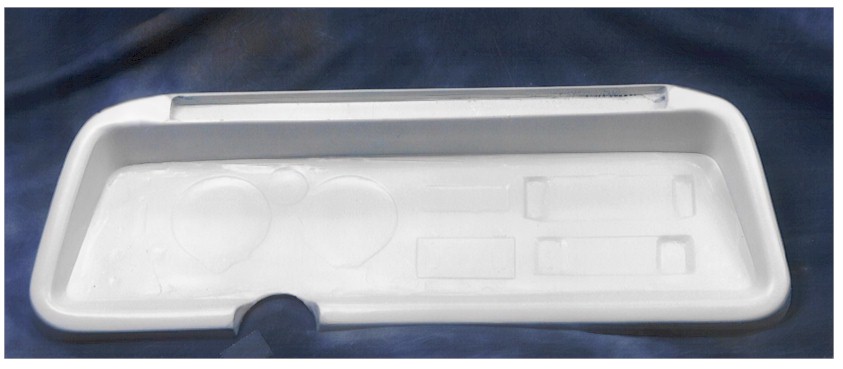

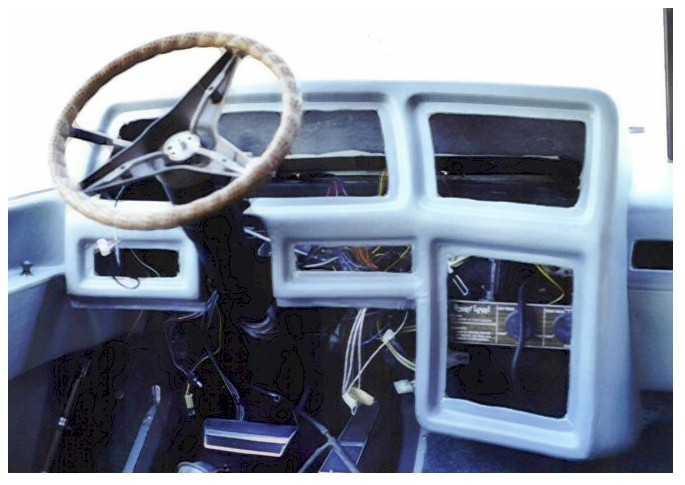

ngmc light bar.jpg (29990 bytes) MAC Wind gmc dash housings.jpg (49362 bytes) ngmc fiber glass housing.jpg (76620 bytes)
  Macwind fiberglass Housing $525.00 NGMC Fiberglass Housing $725.00

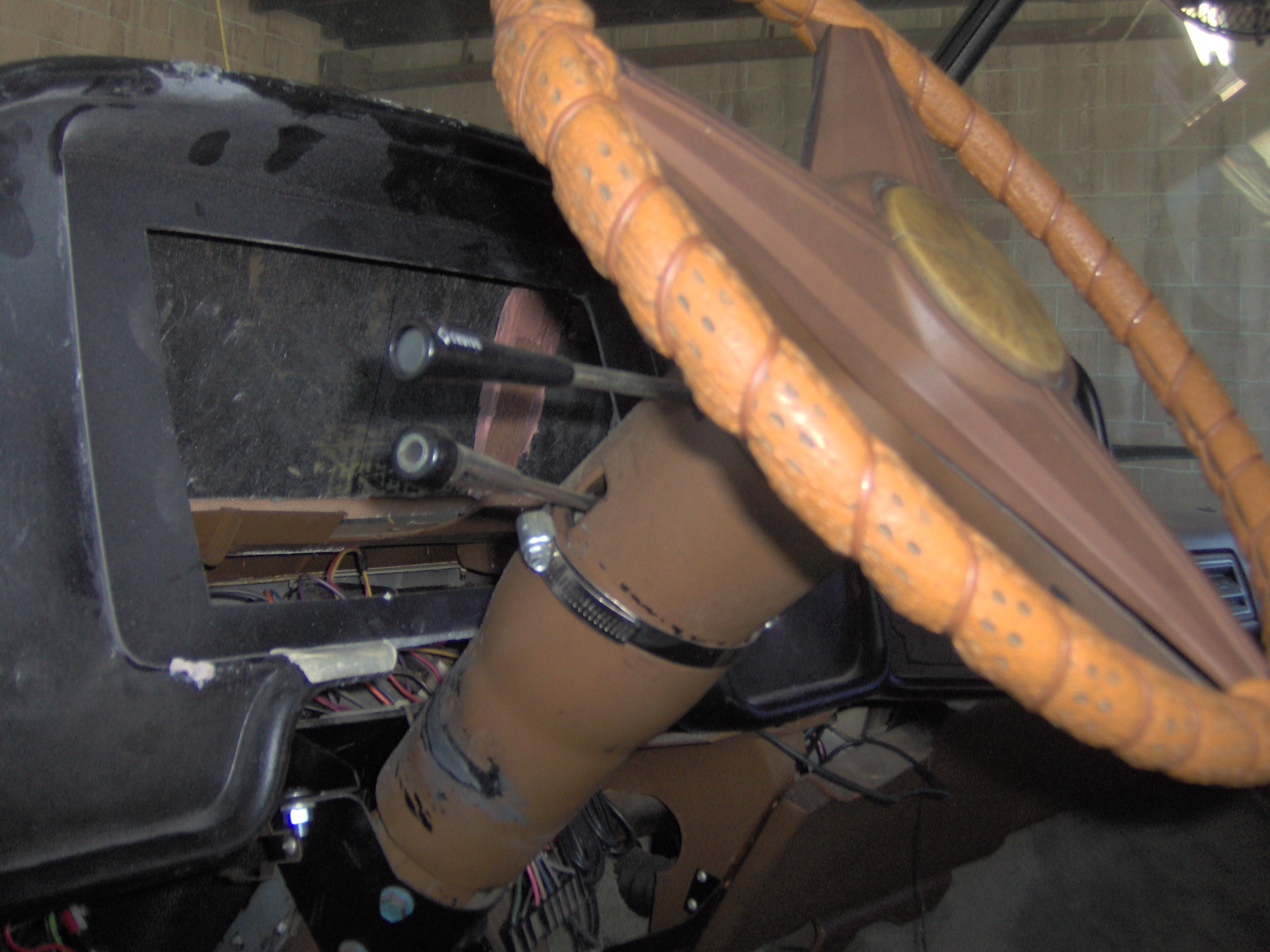

  stear lower.jpg (60667 bytes)

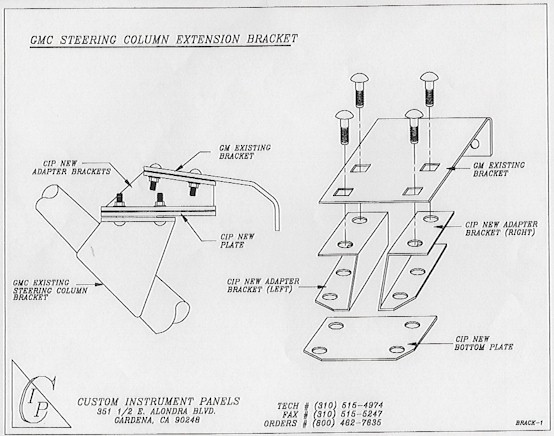

  Steering Wheel Lowering Bracket $195.25

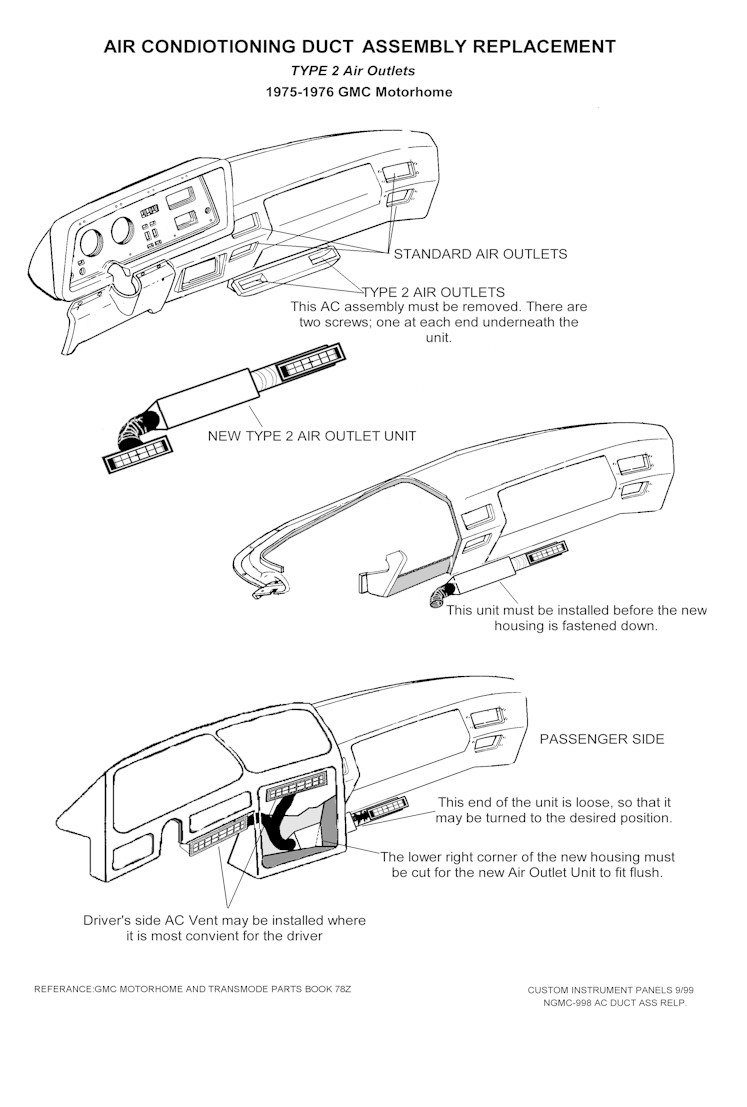

NGMC Air Conditioning Duct Extension Kits

NGMC-998.web.gif (57047 bytes) NGMC-998NRD-web.jpg (61483 bytes) ngmc998_ac_vent_replacement_2.jpg (129166 bytes) Ac77-78.jpg (107383 bytes)

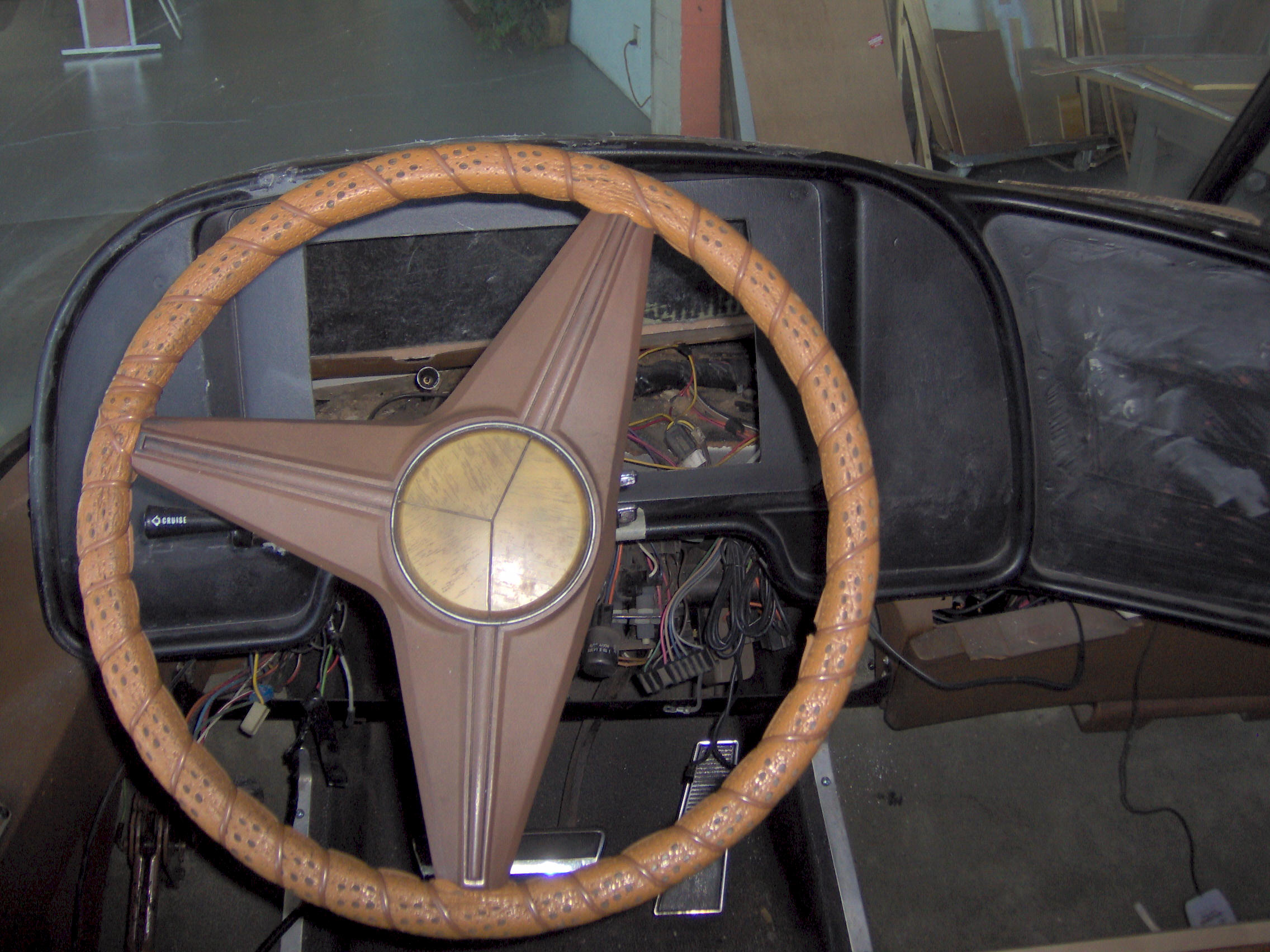

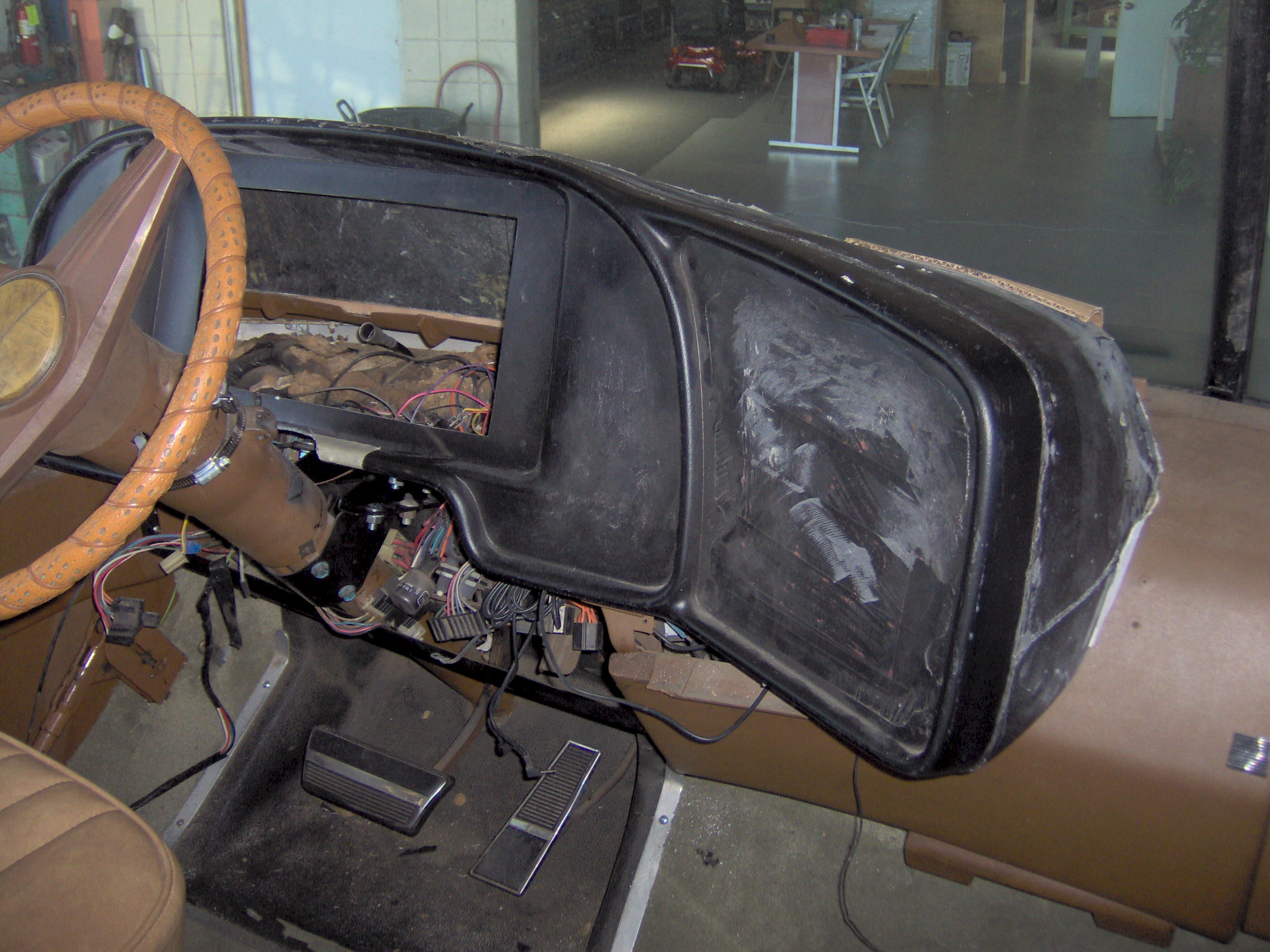

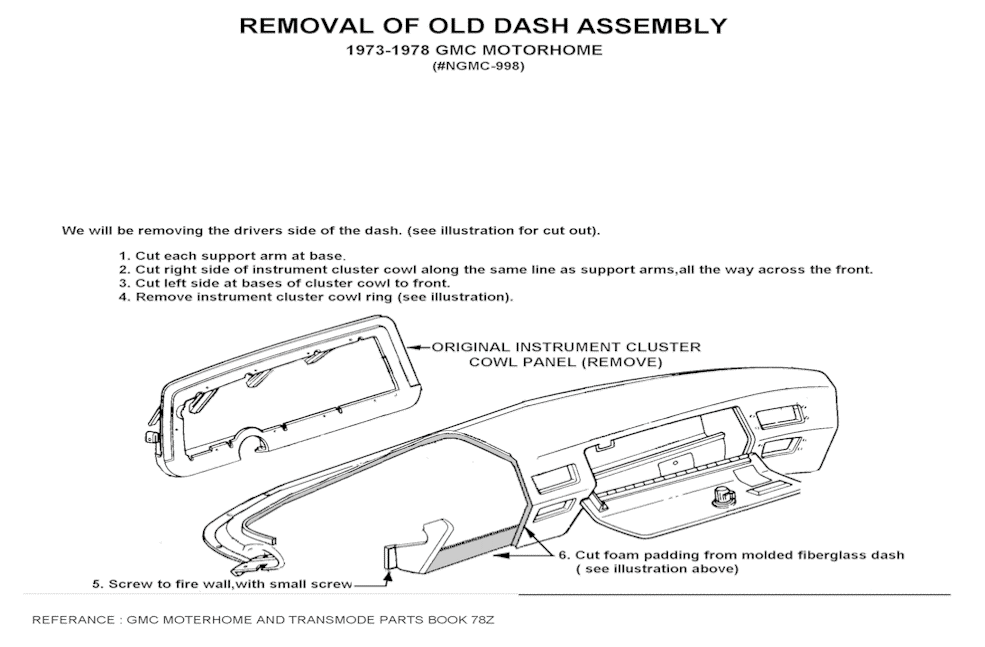

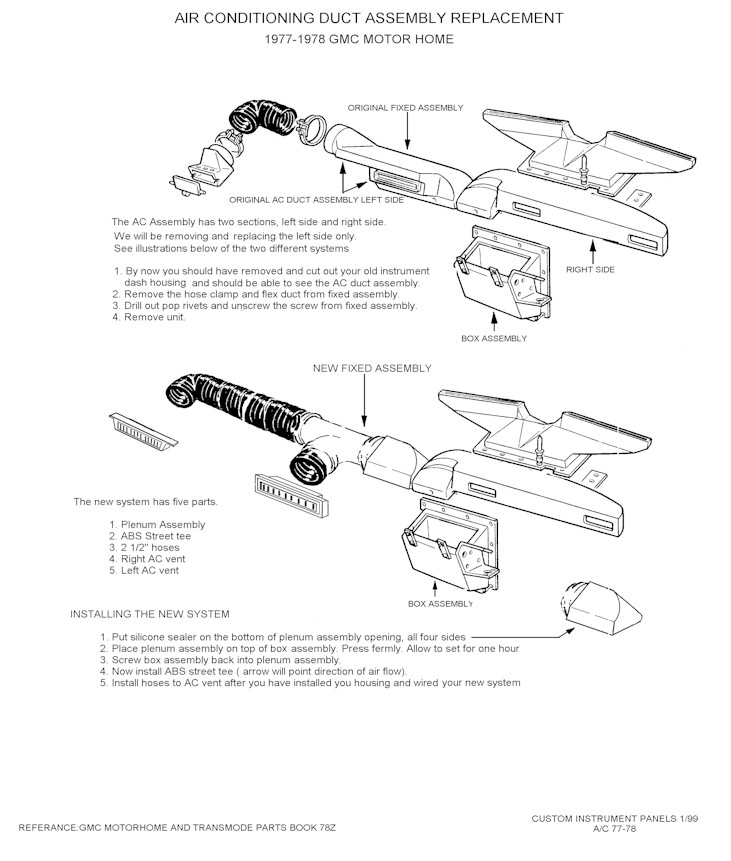

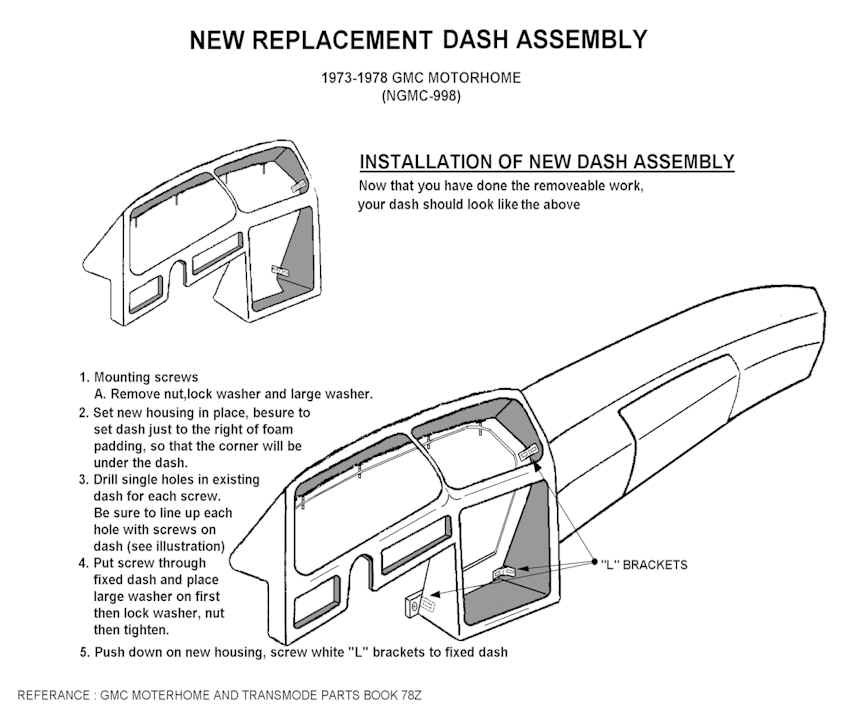

NGMC-998 Dash Cut out and Fitted housing Under Dash AC vent '75-'76 AC Vent replacement '77-'78
