Other Brands  Bus Conversions

RM02.bmp (509134 bytes) RM01.bmp (592254 bytes) rm-prevost.bmp (514998 bytes)    R and M eagle01.jpg (62126 bytes)

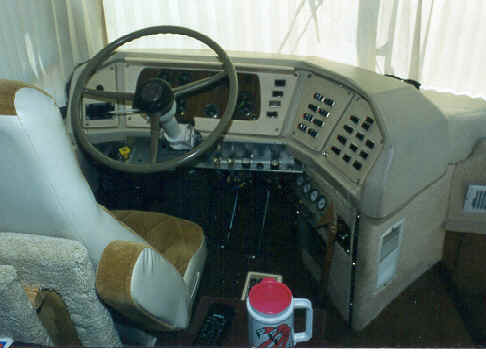

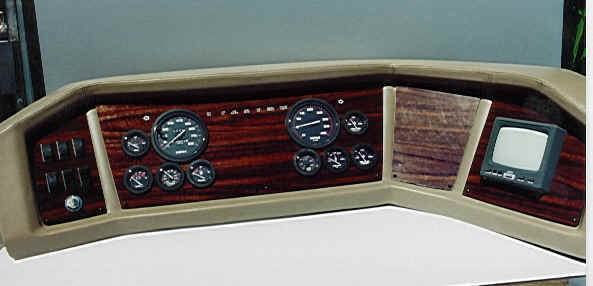

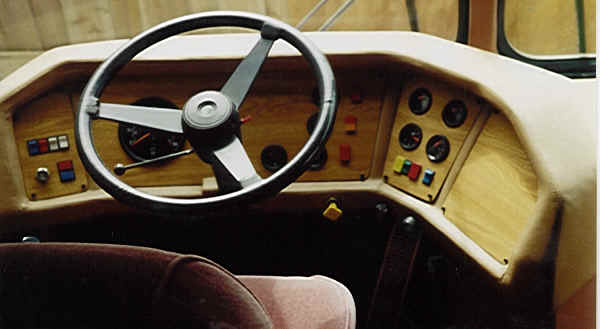

RM FIBERGLASS DASH  WITH CIP INSTRUMENTATION 5" SPEEDOMETER AND TACH RM INSTALLED IN AN EAGLE BUS RM INSTALLED IN A PREVOST R and M Dash Eagle
rm design 1.jpg (159118 bytes) rm design 2.jpg (145395 bytes) rm design 4.jpg (174115 bytes) R and M eagle02.jpg (69770 bytes)

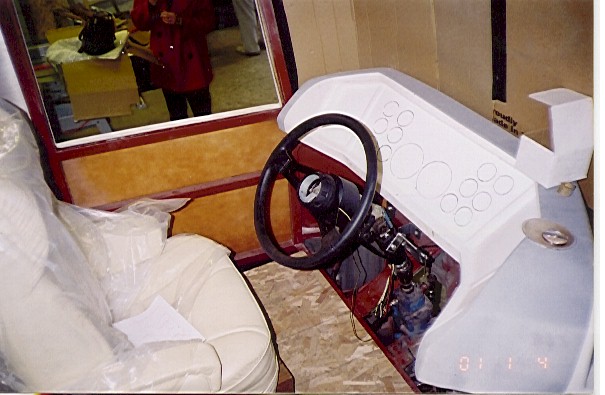

R and M Dash Eagle 2
rm design 3.jpg (83079 bytes) rm design 5.jpg (171776 bytes) r and M eagle2.jpg (207313 bytes) R and M eagle03.jpg (62497 bytes)

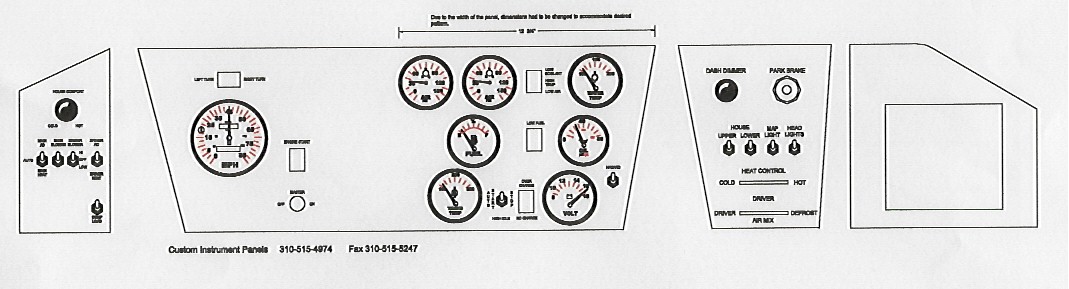

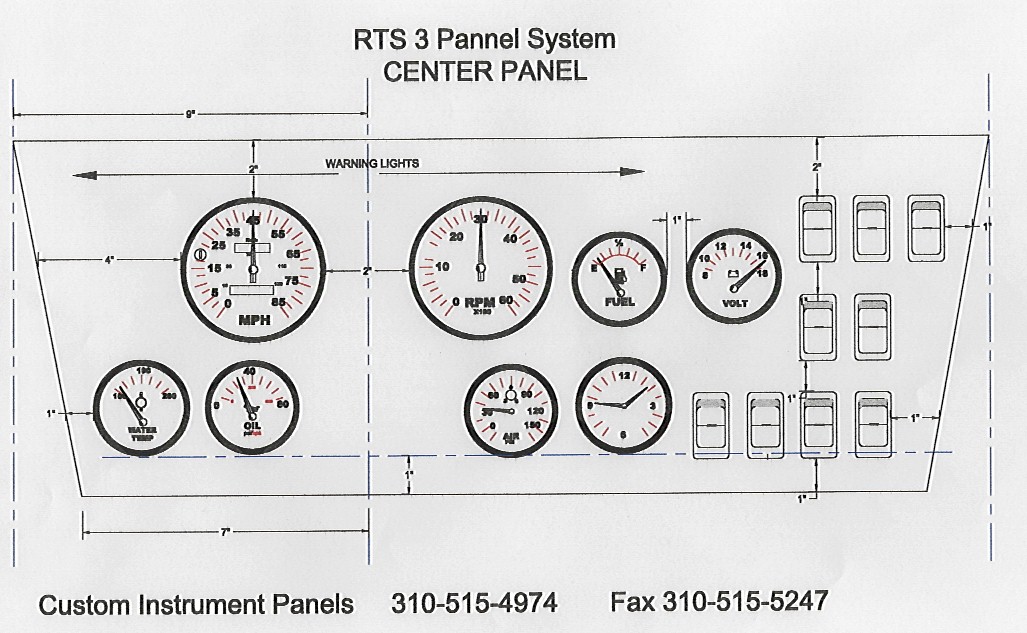

RM Dash designed for Eagle RM Dash designed for RTS Bus R and M Dash Eagle R and M Dash Eagle 3
instrument panel May03.jpg (45185 bytes)

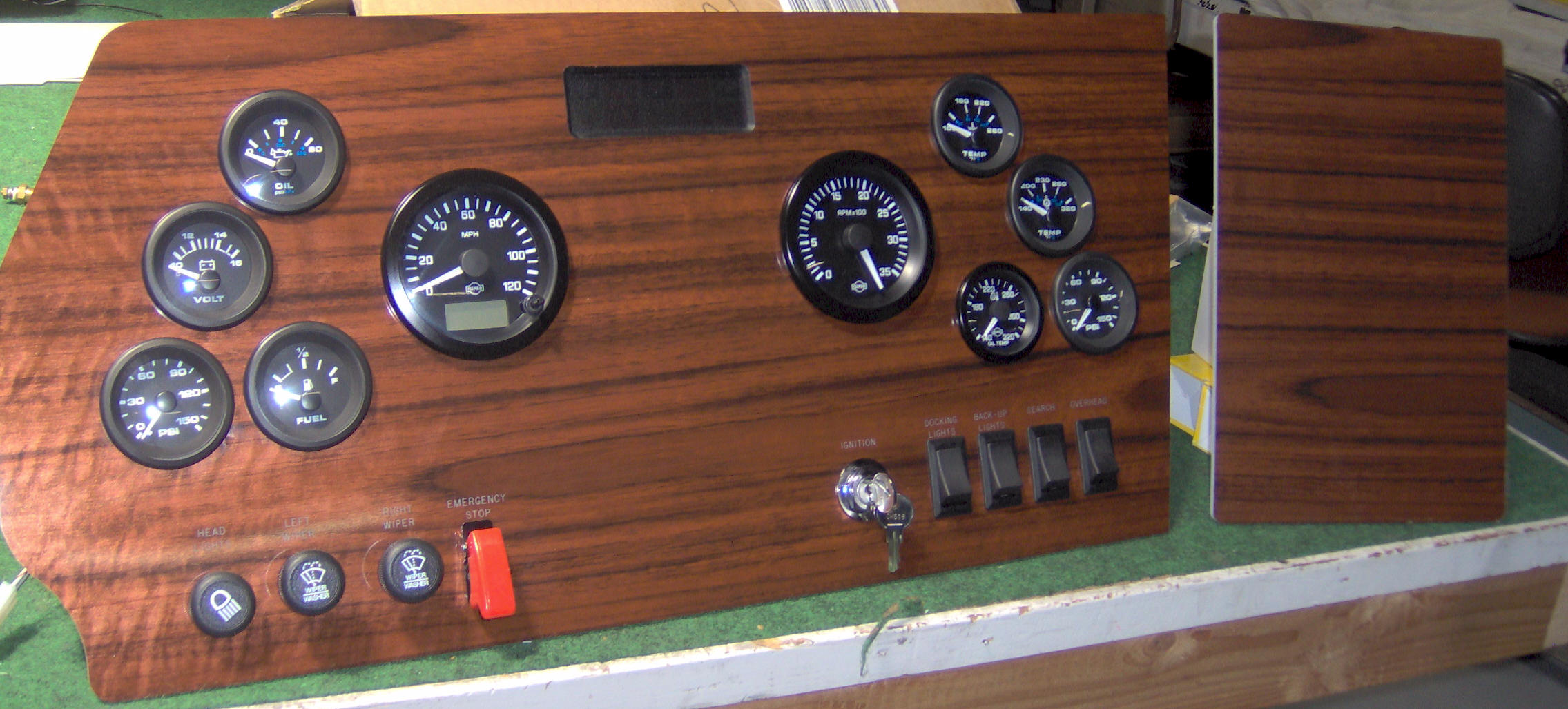

Two Panel RM Dash Two Panel RM Dash with Back-up Monitor

Click on Pictures to enlarge them.

RM FOUR PANEL SYSTEM

WITH CIP INSTRUMENTATION



RM 4 Panel  10 GAUGE LAYOUT

HARDWARE

 PANELS

Gauges

Panel mounting screws

 Gauge Panel Speedometer**

Warning Light Bar

 Switch Panel* Tachometer**
  Extra Switch or Gauge Panel* Fuel Gauge
Turbo Boost

Fiberglass Housing Not Included

*     Blank Panels only accessories

        are not  included.

**   Sending unit included





 Back-Up Monitor Panel * Oil Temp Gauge **
Oil Pressure Gauge **
Voltmeter-12 Volt
 Water Temp. Gauge**
Air Pressure Single or Duel
Transmission Temp**

GRAND TOTAL.....................................................................................................................$1,095.23

FOUR BLANK PANELS.......................................................................................$150.00



RM THREE PANEL SYSTEM

WITH CIP INSTRUMENTATION

RM 3 Panel  8 GAUGE LAYOUT

HARDWARE

 PANELS

Gauges

Panel mounting screws

 Gauge Panel Speedometer**

Warning Light Bar

 Switch Panel* Tachometer**
  Back-Up Monitor Panel * Fuel Gauge
Turbo Boost

Fiberglass Housing Not Included

*     Blank Panels only accessories

        are not  included.

**   Sending unit included

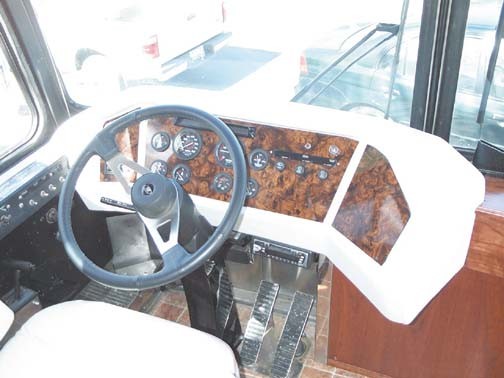

Picture on the right is of an 8 gauge system



 instrument panel May03.jpg (45185 bytes) Oil Temp Gauge **
Oil Pressure Gauge **
Voltmeter-12 Volt
 Water Temp. Gauge**
Air Pressure Single or Duel
Transmission Temp**

GRAND TOTAL..........................................................................................................................$996.89

THREE BLANK PANELS........................................................................................................$125.00

Prices effective January, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.

The Panel featured above is just an idea of what can be done. We can arrange the panel the way you want it. Our Prices include complete panel packages or you can buy the panels, housing and gauges separately. Let us custom make a complete  new instrument panel or modify your existing panels with gauges, switches, warning lights and back lighting. Give us a call with your request.

                                 1-800-463-7635 (ORDERS ONLY)

                                 1-704-985-0171 (TECHNICAL INFORMATION)

The  Bus Panels are available with warning lights, and the following gauges:

         Also available with 12 or 24 volt lighting only. Prices are dependent upon your selection of the above items, some are optional and are not standard on our panels. Key switch and other engraved switches, radios, CB, & back-up camera and monitor are available at an extra charge.
