Chevy P-32 Panel 1991-1997 |
||
 |
 |
 |

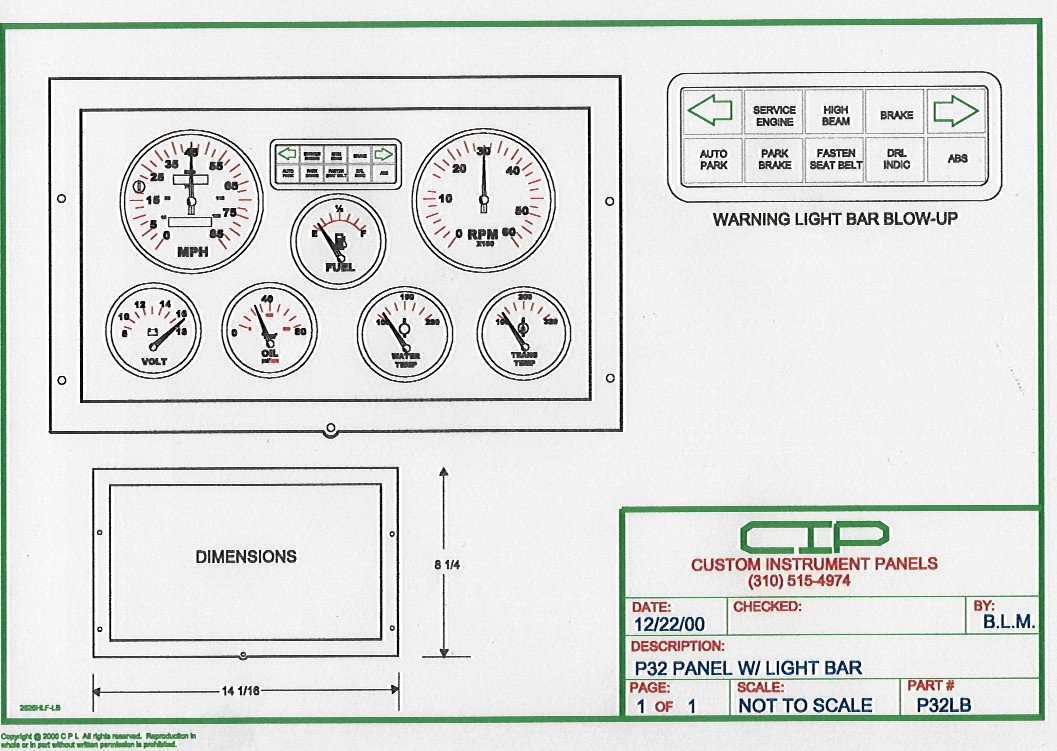

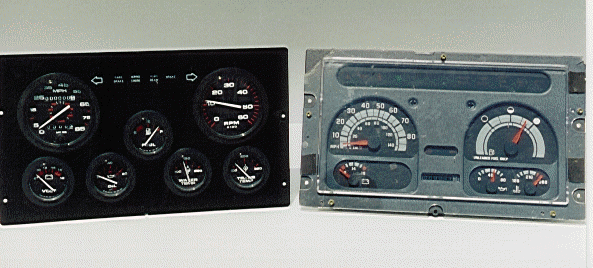

| CIP P-32 NEW DIMENSIONS | CIP P-32 NEW & P-30 OLD | CIP P-32 DIESEL |
|

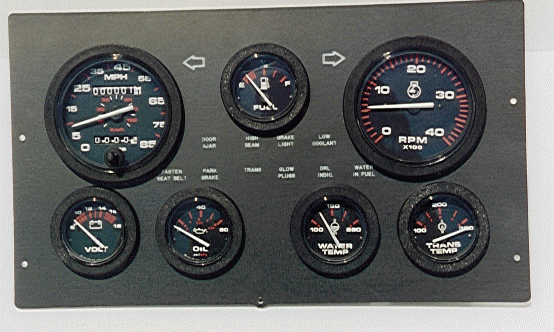

P-32 CIP |
|
|
HARDWARE |
Gauges |
|
Panel mounting screws |
Speedometer with trip odometer |
| Fuel Gauge | |
| Voltmeter-12 Volt | |
| Warning Light Bar
|
Oil Pressure Gauge & 80 psi Sending Unit |
| Transmission Gauge & Sending Unit . | |
| Water Temp. Gauge & Sender | |
| Tachometer | |
Refer to Chevy Replacement Panels
Our panels are made of durable ABS rigid plastic. Its properties include good impact resistance characteristics. Easy installation. It virtually fits into the same space, however some modifications will be necessary for the CIP Panel with the Tach. The panel opening must be at least 12 3/8" wide by 7" high in order for the panel to fit. Overall the panel measures 14 1/16" by 8 1/4".
The wires plug into the same plug for all original wires. There is one new (2) two-pin plug for the new wires, tachometer and transmission temperature gauge. Also there are three senders; oil pressure, transmission temp, and water temp that must be installed.
Our panel comes with a 2-Year Limited Warranty and an owner's manual with easy to read diagramed instructions on how to install your panel.
TOTAL PRICE FOR P-32 PANEL...................................................................................$669.89
Customize your old instrument Panel. We can make you a replacement!
|
SPORTSCOACH DASH RESTORED |
||
 |
 |
 |
| ORIGINAL SPORTSCOACH DASH | NEW DASH | TV & RADIO PANEL |
CUSTOM PANEL SHOWN ABOVE, PLEASE CALL FOR PRICES.
1-800-462-7635 Orders Only
1-704-985-0171 Technical Information
Prices effective January, 2014. All prices are subject to change without notice. Any alterations or deviations from the above specifications involving extra cost will be executed only upon written order and will become and extra charge over and above this quote.
